Universal Flange Adaptor With Epdm Gasket - Egypt

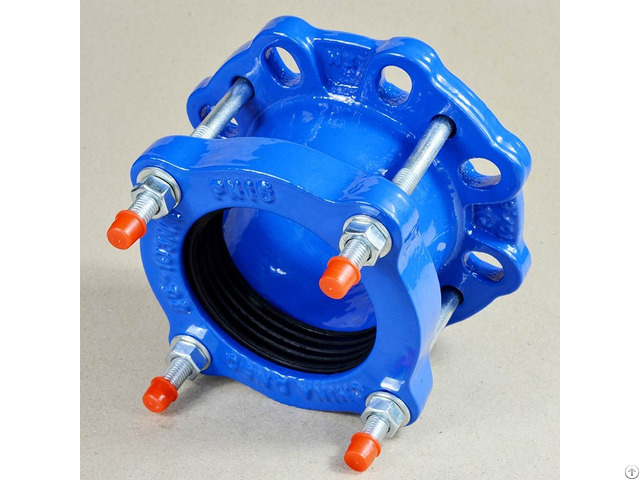

Universal Flange Adaptor

Universal Flange Adaptor: DI body, with EPDM gasket and carbon steel 4.8 grade bolts and nuts.

Flange drilling as per EN1092-2 PN10/16 - Fusion-bonded epoxy coating min 250 micron.

Universal Flange Adaptor Description:

The Universal Flange Adaptor has a Ductile Iron (DI) body, which provides strength and durability.

It is designed to connect pipes with different flange drilling patterns.

The flange drilling conforms to the EN1092-2 standard with PN10/16 pressure ratings, ensuring compatibility with a wide range of piping systems.

The flange adaptor is equipped with an EPDM gasket ensure a reliable and leak-proof connection.

Fasten the flange adapter to the pipe using high quality carbon steel grade 4.8 bolts and nuts.

The 4.8 grade indicates the strength and tensile capabilities of the bolts and nuts, ensuring a secure and long-lasting connection.

To protect the flange adaptor from corrosion and external elements, it features a fusion-bonded epoxy coating.

This coating has a minimum thickness of 250 microns, providing robust protection and extending the life of the flange adaptor.

Design Features:

Ductile Iron is a widely used material for fixtures that offer sturdiness, safety and quality.

Wide tolerance fittings are perfect for connecting pipes of different sizes and materials, repairs, pressure testing and more.

Company Contact:

• Posted By: Beijing Solaire International Corporation

• Phone: 15510066568

• Address: Joints and Repair Clamps, Ductile Iron Pipe Fittings, Ductile Iron Pipe, Cast Iron Pipe and fittings, dalian , Liaoning , Egypt

• Email:

• Website: https://www.slrfoundry.com/

• Business Description: Beijing Solaire International Corporation is located in Beijing, the capital of China, specialized in producing ductile iron pipes and fittings for drinking water with standard ISO2531: 1998/2009 and EN545: 2010 and sewage water with standard EN598: 2007 - and grey cast iron pipes and fittings for drainage with standard EN877 and ASTM A888, and other related products such as valves, joints, manhole covers and water meters.

  Nonstandard and OEM products can be produced according to the drawings or samples provided by the customers.

  At the same time, we are certified by ISO9001: 2008 Quality Management System / ISO14001: Environmental Management System.

  In the past 10 years we have exported our products to Middle East, Southeast Asia, Europe, Africa, South American for over 30 countries and gained good reputation in water project industry.

  We are looking forward to receiving your inquiries and hope to establish long term mutual benefit cooperation relationship with “win-win” situation.

  Our believe:

  You surely will be good when your business partners become better!
