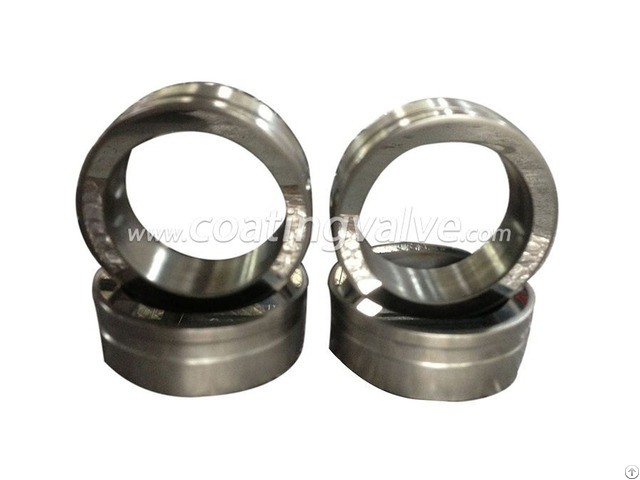

Tungsten Carbide Valve Seats Product Data

Valve Seat: The detachable surface parts in valve are used to support the valve spool in the fully closed position and constitute a sealed part.

Generally, valve seat diameter is the maximum flow diameter of the valve.

PRODUCT PARAMETERS

As shown below, here are some tables helping you know more about basic High Performance Valve Seat data: 1 - Common base material and chemical composition

Common base material and chemical composition(wt.

%)

Mat

Type C Si Mn P S Cr Mo Ni Cu Nb Al Ti Co Fe

4130 0.28-0.33 0.15-0.35 0.4-0.6 ≤0.025 ≤0.025 0.8-1.1 0.15-0.25 ≤0.03 ≤0.03 Bal

4140 0.38-0.45 0.15-0.35 0.75-1.0 ≤0.025 ≤0.025 0.8-1.1 0.15-0.25 Bal

410 0.08-0.15 ≤1.0 ≤1.0 ≤0.025 ≤0.025 11.5-13.5 ≤0.75 Bal

410SS ≤0.08 ≤1.0 ≤1.0 ≤0.025 ≤0.025 11.5-13.5 ≤0.6 Bal

F6NM ≤0.05 ≤0.6 0.5-1.0 ≤0.025 ≤0.025 11.5-14.0 0.5-1.0 3.5-5.5 Bal

F51 ≤0.03 ≤1.0 ≤2 ≤0.025 ≤0.025 21-23 2.5-3.5 4.5-6.5 Bal

17-4PH ≤0.07 ≤1 ≤1 ≤0.025 ≤0.025 15.0-17.5 3.0-5.0 3.0-5.0 0.15-0.45 Bal

Inconel625 ≤0.1 ≤0.5 ≤0.5 ≤0.015 ≤0.015 20-23 8-10 Bal 3.15-4.15 ≤0.4 ≤0.4 ≤1 ≤5

Inconel718 ≤0.08 ≤0.35 ≤0.35 ≤0.015 ≤0.015 17-21 2.8-3.3 50-55 ≤0.3 4.75-5.5 0.2-0.8 0.65-1.15 ≤1 Bal
