Three Way Pneumatic Control Valves - China

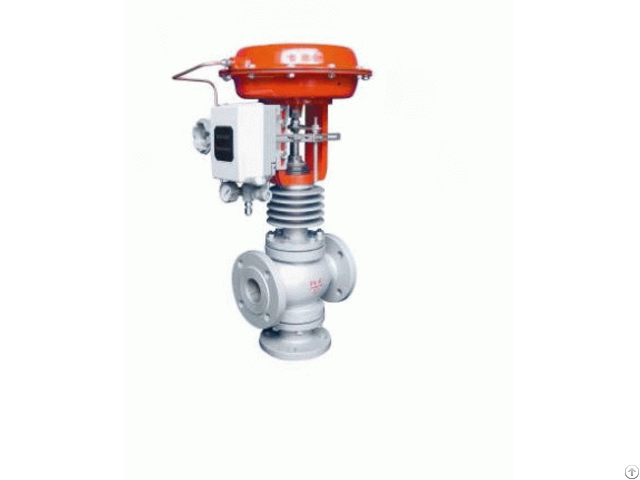

Three-way pneumatic control valve uses cylindrical thin window shaped valve guiding, which is different from the guide bushing of plunger valve.

Equipped with multi-spring actuator makes it have the advantages of simple structure, light weight, small volume, ease of dismounting etc.

Three-way pneumatic control valve is widely used to accurately control gases, liquids and other media.

Process parameters such as pressure, flow, temperature and liquid level maintain a set point.

Three-way pneumatic control valve is suitable for a occasion that the fluid is divided into two way to outflow through a three-way or two fluid is synthesized into a fluid through a thee-way valve

Product features:

- Action orientation of a fluid on the spool is in the state of open so that the valve can work stably.

- The side of spool also generates a guiding role with the internal surface of valve seat surface in addition to guide bushing in the bonnet.

- Actuator with multi-spring structure reduce by 30% height and 30% weight.

Part materials:

Body & bonnet: HT200 ZG230~450 ZG1Cr18Ni9Ti

Seat: 1Cr18Ni9Ti

Packing: PTFE, flexible graphite

Spring: 60si2Mn

Push rod & valve rod: 2Cr13, 1Cr18Ni9Ti

Lining: 2Cr13

Gasket: rubber asbestos plate, 1Cr18Ni9 asbestos gasket

Connection standards:

- Flange standards:

cast iron flanges: GB4216.5-84

forged steel flanges: GB9113-88, JB/T79.1-94

- Flange sealing face type:

PN10, PN16, PN64: convexity

PN40, PN64: male and female, concave valve body.

- Structure length: GB12221-89
