The Pneumatic Tank Bottom Valve - China

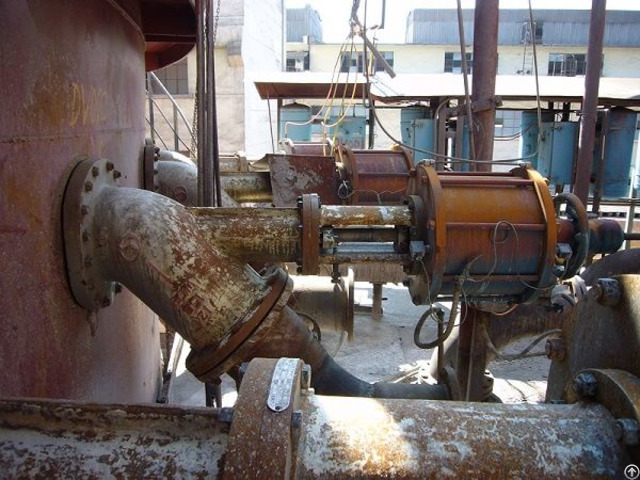

The pneumatic tank bottom valve(referred to as Tank valve, Angle bottom valve, Bottom drain valve, Flush mount valve etc) are designed to provide drainage and dead space free shutoff for reactors, vessels, autoclaves and storage tanks.

The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel.

This eliminates any buildup of product within the vessel nozzle itself.

Features 1 - This tank bottom angle valve is manufactured in integrated Y type structure; 2 - Both Rising Disc Type (the valve is opened into tank) and lowering disc type ((the valve is opened into valve) can be designed by Quanshun valve;

3 - Crust breaking for disc rising type, so anti_scaling function is avaliable.

4 - The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide.

The auxiliary line sealing guarantee the reliability of the sealing performance.

5 - Air cylinder operation is usual for saving labor.

Technical Parameters Size: 2”~14” DN50~DN350 Pressure：Class 150~Class 600 PN1.0~PN16 Body material ：WCB, CF8, CF8M, CF3, CF3M etc Connection Type：Flange, weld etc.

Driving method : Manual, pneumatic Applications Alumina industry Chemical Steel industry Mining industry Pharmaceutical industry Fine chemical process
