Special Dome Valve For Ash Handling System - China

Dome valve widely installed ar ash handling system in the coal power plant .

It often has 3 month life time as frequently failure  the on site opeation .

To slove this problem ,we developed ceramic rotary gate valve .

 The ceramics is used as the wear-resisting materials.

So the valve widely used to replace pneumatic dome valve in power plant .


BENEFITS

1 - The sealing surface of the valve is made of toughened engineering ceramics with good abrasion resistance and prolonged service life

2 - Product with customized structural length and connection size is available.

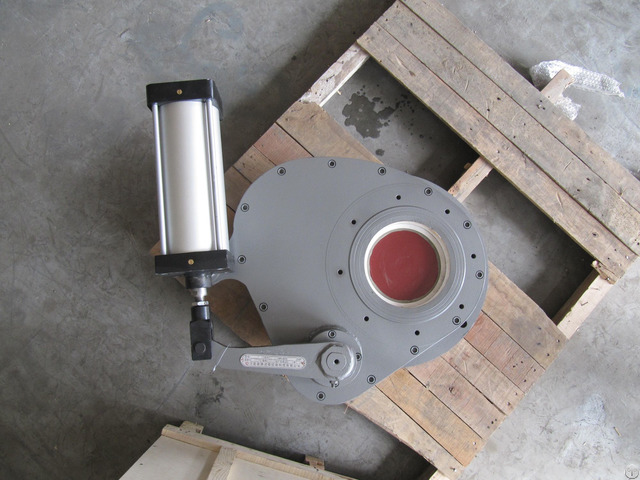

Pneumatic ceramic rotary gate valve has long working life.

3 - The valve plate rotational motion of the valve disc can avoid the ash deposition on the sealing surface.

4 - Equipped with knife plate, the pneumatic rotary gate valve can separate the dry ash from the medium.

5 - The rotation structure with shorter stroke makes for less abrasion and longer life time of the pneumatic ceramic rotary gate valve .

6 - Valve dimension is the same as the general dome valve.



TECHNICAL SPECIFICATIONS

Size : 2-12 inch DN50-DM300

Pressure: Class150

Body material： WCB

Sealing material： Ceramic

Operating methord： Pneumatic

Connection Type : Flange

Applications

Dense phase pneumatic conveying system of power plant.
