Slurry Valve - China
price: 150.00 Dollar US$

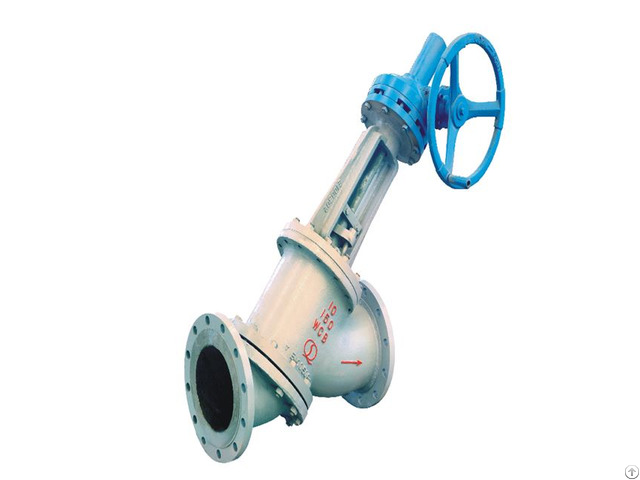

Featuring abrasion resistance, high pressure resistance, erosion resistance and anti-scaling performance, the Y type globe valve for slurry control is specially offered for controlling or stopping the slurry.
The applicable industry includes alumina, metallurgy and mining
Features 1, The valve body of globe valve for alumina slurry control is consisted of two pieces.
The left and right valve bodies are provided in geometric design.
Besides the solidworks software for three -dimensional contouring, the ANSYS software is also applied for flow field analysis.
2, The valve seat of y type slurry valve is separated from the valve body.
Installed between the two valve body, so the valve seat can be replaced easily .
3, To ensure the rectilinear motion of the valve stem, there is an anti-rotation device provider for the valve stem of the y type slurry valve .
4, No pocket inside valve .
5, Low pressure drop .
6, The range of product is anti-scaling, which are widely use in alumina process.
Technical parameter Size：2”~14” DN50~DN350 Pressure ：Class 150~Class 600 PN1.0~PN16 Body material：WCB, CF8, CF8M, CF3, CF3M etc Connection type : Flange, weld, and some others Driving method: Manual, Electric, pneumatic
Company Contact:
- Phone: +86-18003823620
- Address: No.28 , Huagong Road, Zhengzhou , Henan , China
- Email:
- Website: http://www.qslk.cn
Published date: August 2, 2018 - Modified date: August 28, 2018
- Business Description: Henan Quanshun Flow Control Science & Technology Co., Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve , rotating ball valve , ball valve, control valve, butterfly valve, gate valve, check valve and others.
Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
Our Products:
- bidirectional rotary ball valve
- eccentric semi ball valve
- ball segment valve
- slurry valve
- dumping valve
