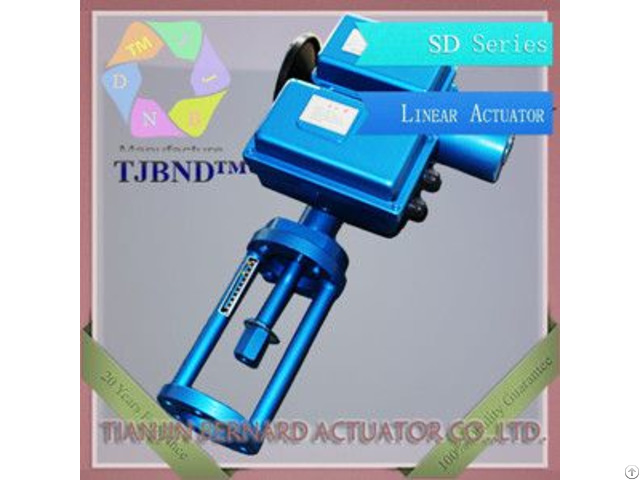

Sd Series Linear Electric Actuator - China
price: 1200.00 Dollar US$
Demonstration: OA-10/ voltage travel time mounted model control model
Supply voltage: K: 220VAC, F: 380VAC, Travel time: Sees the table
Mounted model: Z: Direct-mounted, H: foot-plate, Control model: L: Two types, switch, switch quantity input, abbreviation: Integral-model and proportional modulating type, 4---20mA input
S: Separated-model and proportional modulating type, 4---20mA input
Y: Remote-control type, the switch quantity input
Main Technical parameters:
The following parameters mainly apply to proportional modulating type; the 1, 2, 3, 4, 5, 6 rules are not suitable for remote controlled type and on-off type.
1 - Input signal: 4~20mA(or1-5V) DC
2 - Input channel resistance: 250Ω
3 - Input channel number: 1( separated model 3)
4 - basic error: 1%; 2.5%
5 - Return error: 1.5%
6 - Dead band: 0.5-3% continual and adjustable
7 - Damping characteristic: no swing
8 - Voltage of power supply:
110V-460V
9 - Operating environment:
Temperature:
Integral model: -25~+75°C
Separated model: -25~+80°C
position-localizer: -20 ~+75°C
Humidity: ≤85% no corrosive characteristic exist in the ambient air.
10 - Protection class: in accordance with IEC14 IP65 (rainproof and dustproof); position-localizer GAMX in accordance with IEC14 IP44.
Company Contact:
- Posted By: Tianjin Bernard Actuator Co.,Ltd
- Phone: 00862227630178
- Address: tianjin china, TIANJIN , TIANJIN , China
- Email:
Published date: May 29, 2018
- Business Description: We are the industrial Valve and electric actuator manufacturer and exporter, such as gate valve, ball valve, butterfly valve, globe valve, check valve, knife gate valve and so on.
