Rotary Plug Valves - China

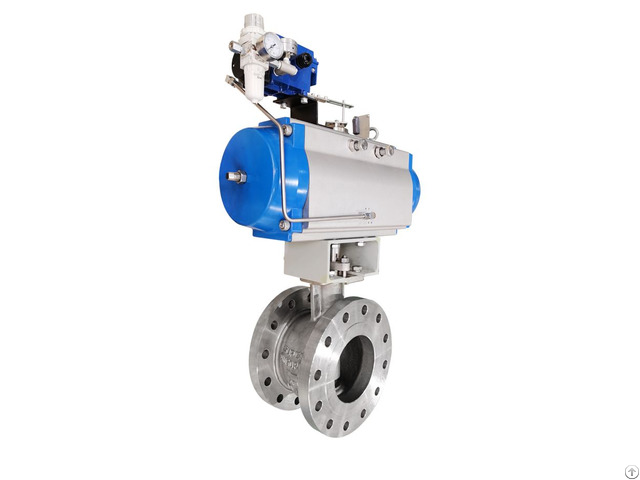

Rotary Plug Valve

A rotary plug valve with a plug-shaped flow-restricting component that follows an eccentric path as it rotates.

The plug does not contact its seat until it is rotated to within a few degrees of the closed position.

When the plug contacts or "cams" into the seat, the seat surfaces are dynamically aligned for closure.

This rotary plug valve type may also be referred to as a rotary globe valve.

How rotary plug valve work:

When the material in the upper bunker falls under its own weight and fills the space in the rotor blade, it rotates with the blade to the lower outlet and is discharged.

Rotary plug valve can continuously supply and discharge materials.

The rotary plug valve can play the role of feeding and locking the air flow in the pneumatic conveying system.

Due to the low-speed rotation of the rotor and the very small gap between the rotor and the inner cavity of the housing, the reverse flow of the air flow is effectively prevented, thereby ensuring the stability of the air pressure in the system and the normal discharge of materials.

Therefor, rotary plug valve is an important part of the high-pressure gas to the material transportation in the state of the pipe network.

The rotary valve is used as the unloader of the silo in the material collection system.

Features and applications:

It is compact, lightweight, and has a large flow capacity and wide rangeability.

In addition, the CN8 series innovative split type plug structure can better reflect the characteristics of anti-erosion and reliable sealing.

Especially suitable for the control of those slurry fluids susceptible to clogging.

They also provide accurate, reliable control in a broad range of applications, such as high and low-pressure steam, clean/dirty corrosive liquids & gases, erosive and abrasive slurries etc.

Company Contact:

• Posted By: Zhejiang SUPCON Fluid Technology Co., Ltd.

• Phone: 86 571 81119774

• Address: SUPCON Park, No.309 Liuhe Road, Binjiang District, Hangzhou , zhejiang , China

• Email:

• Website: https://www.supconvalve.com/

• Business Description: Company Profile

  Founded in March 1993, SUPCON is one of China's leading manufacturer and supplier of automation and information technology, products and solutions.

  Its automation products and solutions are applied in over 35 countries and regions worldwide.

  Zhejiang SUPCON Fluid Technology Co., Ltd. is an important member of the SUPCON Group.

  Our core products, industrial process control valves (Globe Valve, Ball Valve, Eccentric Rotary Valve and Butterfly Valve).

  Our company has a field experienced and strong technical team, and also committed to the development of stringent complex working condition control valve, to solve high pressure, corrosion, flash, erosion, large differential pressure and a series of technical problems.

  Our company is committed to providing users with international competitiveness of high quality product and comprehensive technical services in oil and refinery, petrochemical, coal chemical, fine chemical, metallurgy and so on.

  Company Culture

  SUPCONS mission:

  Make work and life easier

  SUPCONS vision:

  Leave a deep footprint upon Chinese development

  SUPCONS core values:

  Creating value for our customers, persist in struggle and innovation,

  respect-work and integrity, and striving for excellence.

  SUPCON Fluids Objective:

  To become a first-class intelligent control valve and solution provider

  The company is specialized in producing bellows single-seat control valve, Double seated valve, Cryogenic control valve and soon
