Pressure Vacuum Valve - China

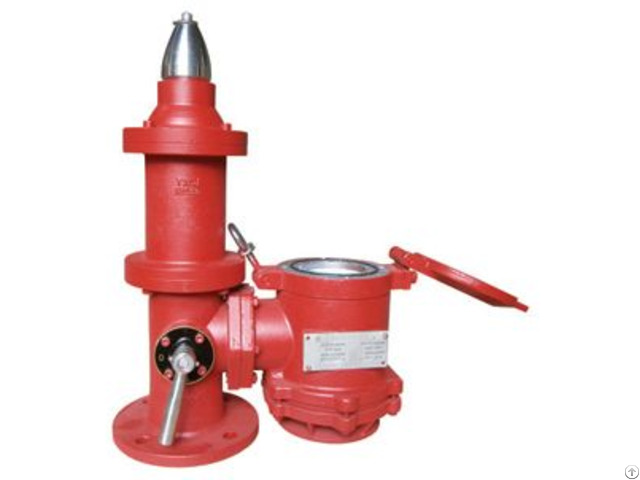

Marine PV valve(pressure/vacuum valve for cargo oil tank)is also called as high-velocity relief valve, high velocity P/V valve, generally used in the relief system of the oil tanker and chemical tanker, according to the current regulations IMO and IBC.

The purpose of the high velocity valve is to provide automatic control of pressure differentials during liquid cargo ship loading, voyage, ballasting and de-ballasting without any manual operation, also, it provides auto-protection against fire and explosions on deck.

Additionally in the event that the inert gas system can not supply gas promptly, the vacuum valve can auto open to protect the tank against excessive vacuum when de-ballasting on dock.

Normal, when the pressure risen in tank because of temperature or loading, the pressure valve open automatically and vent gas.

When the pressure of tank come to pressure differentials, the vacuum valve or pressure valve all can be automatic resetted.

If an ignition occurs outside the tank space, the flames will be quenched in the flame trap.

Model Opening pressure

(kPa) Rated working pressure

(kPa) Flow rate

(m3/h) Outlet air flow velocity of pressure valve(m/s) Pressure valve Vacuum valve Pressure valve Vacuum valve Air removal cover Pressure valve Vacuum valve Gas free cover DF50 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞350 ＞350 ＞250 ＞30

DF65 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞350 ＞350 ＞250 ＞30

DF80 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞600 ＞600 ＞400 ＞30

DF100 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞800 ＞600 ＞400 ＞30

DF125 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞1500 ＞1500 ＞1000 ＞30

DF150 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞2000 ＞2000 ＞1000 ＞30

DF200 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞3000 ＞3000 ＞2200 ＞30

DF250 14.0-21.0 -3.5-7.0 21.0 -7.0 2.0 ＞3500 ＞3000 ＞2200 ＞30
