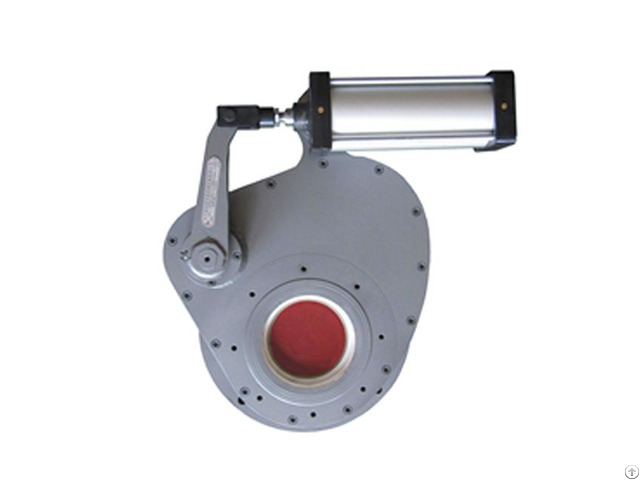

Pneumatic Ceramic Rotary Gate Valve - China
price: 100.00 Dollar US$
The pneumatic ceramic rotary gate valve is a high performance valve developed according to the fault frequently occurred during the operation of the dome valve.
The ceramics are used as the wear-resisting materials.
So the valve widely used to replace pneumatic dome valve in power plant .
Features
1 - The sealing surface of the valve is made of toughened engineering ceramics with good abrasion resistance and prolonged service life.
2 - Product with customized structural length and connection size is available.
Pneumatic ceramic rotary gate valve has long working life.
3 - The valve plate rotational motion of the valve disc can avoid the ash deposition on the sealing surface.
4 - Equipped with knife plate, the pneumatic rotary gate valve can separate the dry ash from the medium.
5 - The rotation structure with shorter stroke makes for less abrasion and longer life time of the pneumatic ceramic rotary gate valve .
Technical Specifications
Size : 2-12 inch DN50-DN300 Pressure：Class 125 PN1.0~PN1.6
Body material ：WCB(A105)
Sealing material ：Toughened engineering ceramics
Applications
Dense phase pneumatic conveying system of power plant.
