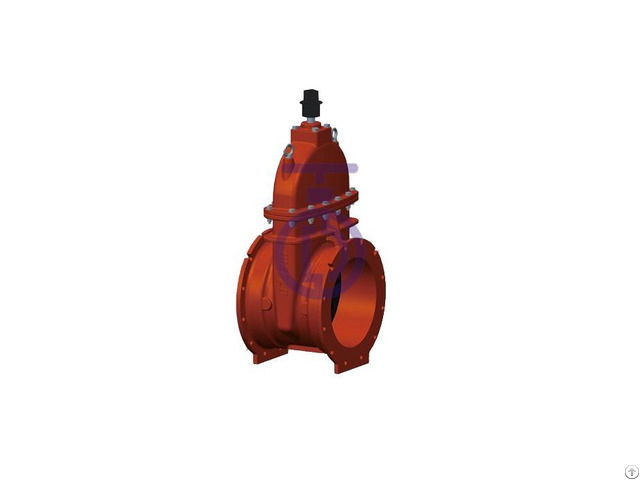

New Style Bare Shaft Gate Valve - China

1 - Tanghai Valve is available in both non-rising stem and outside stem & yoke (OS&Y) designs.

2 - Available in sizes 3 through 96 the Metal Seated Solid Wedge Valve is designed in accordance with AWWA C500 standards as well as ANSI and ASTM standards.

3 - The valve is available with hand wheels, operating nuts and integrally cast mounting pads for gears or electric actuators and all valves are coated internally and externally with liquid epoxy conforming to AWWA C500.

4 - Designed and manufactured for use in waste water and sewage applications.

MATERIALS OF PARTS

Number Part Name Material Optional Material

1 Body CAST IRON EN-GJL-250

2 Body seat ring CAST BRONZE ASTM B62

3 Wedge ring CAST BRONZE ASTM B62

4 Wedge CAST IRON EN-GJL-250

5 Yoke bushing CAST BRONZE ASTM B584

6 Stem BRASS ASTM B16

7 Body gasket GRAPHITE NON ASBESTOS

8 Bolts STEEL CARBON STEEL

9 Nuts STEEL CARBON STEEL

10 Bonnet CAST IRON EN-GJL-250

11 Gland follower bolts STEEL CARBON STEEL

12 Stuffing box gasket GRAPHITE NON ASBESTOS

13 Suffing box CAST IRON EN-GJL-250

14 Packing GRAPHITE NON ASBESTOS

15 Gland follower DUCTILE IRON EN-GJS-450-10

16 Handwheel CAST IRON EN-GJL-250

17 Name plate AL 18 Wsher STEEL CARBON STEEL

19 Handwheel nut STEEL CARBON STEEL
