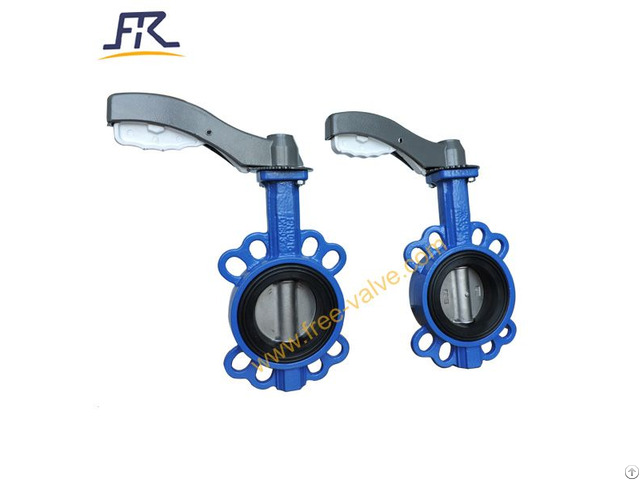

Lever Operated Wafer Resilient Butterfly Valve - China

FREE-VALVE’s lever operated wafer resilient butterfly valve is an economical and robust valve with an rubber lining, offering longer service life with lower maintenance cost.

Self-lubricating bearings ensures perfect guiding and turning of the shaft without seizure or premature wear.

Flange gaskets are not required since the lining that extends onto the faces acts as a gasket.

The bonded liner extends the lifetime of the valve ensuring there is no corrosion between the body and liner.

Features: 1 - Excellent double side sealing functions, completely seals, zero leakage in test, it can be use for cutting off medium or regulating flow rate .

2 - The simple structure, the weight is light, 90' revolves, Quickly Open and close, Fixable operation.

3 - Centric disc, one piece shaft, Easy to disassemble and repair, can be installed in any position.

4 - The choice of disc and seat materials to suit working conditions and medium.

Technical Specification:

1)Size Range：NPS2~NPS8, 2)Pressure Range：PN6~PN16, Class150

3)Body material：Carbon Steel/Stainless Steel/Ductile iron, Copper Alloy

4) Sealing material：EPDM 5) Body type：Wafer

6) Working temperature: ≤80°C

7) Operating method：Lever Operated

8) Pressure test: GB/T13927; API598

9) Face to Face: GB/T12221; API609 Application: FREE-VALVE’s lever operated wafer resilient butterfly valve could easily achieve Bi-Directional sealing, therefore is a widely applied valve in oilfield, agriculture, power plant condensates waterworks, water treatment, seawater, exhaust, flue gas.

Because of rubber lined body materials, it is usually used in low pressure lines.
