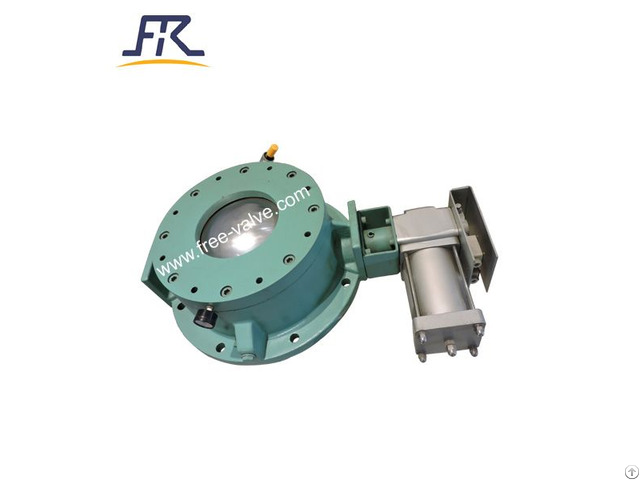

Inflatable Seat Dome Valve - China
price: 2500.00 Dollar US$
FREE-VALVE’s inflatable seat dome valves are designed for ash handling system.
Dome valve is unique in its ability to open and close with a tight pressure seal in environment where abrasive material are passing.
Pneumatic Dome valve can achieve operating reliability in severe applications .
Features 1 - Simple valve structure and operation principle, makes the dome valve suitable for pneumatic conveying system .
2 - Tight sealing performance as Inflatable seal self-compensates for wear as the valve is used.
The inflatable seal provides continuous wear compensation.
3 - Valve can open and close through a static or moving column of material.
4 - Easy to maintenance and replacement.
5 - Different valve body materials are optional depending on customer need.
Technical Specification:
1) Size Range: NPS4~NPS16, DN50~DN400
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~350℃
4) Connection Type: Flange 5) Sealing material: Inflatable seats /Hard seats 6) Pressure test: GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Valve body : GB/T12224, ASME B16.34
Operating Type: Pneumatic
Application: FREE-VALVE’s inflatable seat dome valves are suitable for abrasive material with abrasive particles, such as power plants, ash, mineral processing, food industry, biomass, steel industry, material handling, pharmacy etc .
Company Contact:
- Phone: 86-371-55019379
- Address: No.76 Cuizhu Road, High-Tech Development Zone, Zhengzhou City, Henan, China , Zhengzhou , Henan , China
- Email:
- Website: https://www.free-valve.com/
Published date: December 4, 2020
- Business Description: Zhengzhou Free Fluid Control Technology Co.,Ltd is leading designer and supplier of high-quality industrial valves, for industries ranging from Coal Washing Plant ,Power Plant ,Alumina Refinery, Steel Plant,Petro-Chemical, WasteWater,Potable Water among others for global markets.
We provide comprehensive “Fluid Control Solutions” for customers.
Our Products:
- Pneumatic Ceramic Rotating Gate Valve
- Inflatable Seat Dome Valve
- Stainless Steel Ceramic Lined Ball Valve
- Pneumatic Full Ceramic Lined Double Disc Gate Valve
- Stainless Steel Ceramic Lined Butterfly Valve
