Half A Ball Valve - China

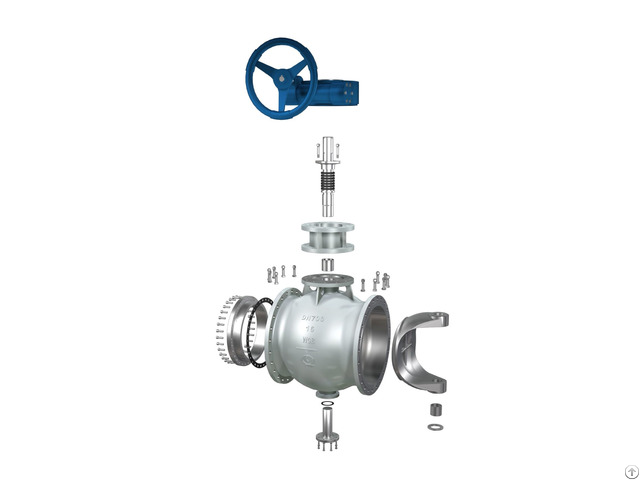

Ball segment valve is a high performance valve we have developed with advanced technology.

It also called eccentric ball valve, semi ball valve, C type ball valve and E type ball valve .

It is designed on the base of O type ball valve, which solves the difficulties of conveyance of “solid-liquid” and “solid-gas” two phase medium.

Benefits 1 - With straight through type valve body, this valve can keep the medium flow by linear when the valve fully opened, so it reduced less energy loss compared with other valves.

2 - Easy to operate: As the valve disc moved away from valve seat without any contact, so it has smaller starting torque compared with O type ball valve and easy to operate.

3 - Because of double eccentric structure design, the semi-ball valve is perfectly sealed and can be closed tightly .

4 - When the valve is closed, the wedding force is able to remove the foreign materials, therefore it has anti-scaling performance.

Technical Specification 1 - Size： DN40~DN1400 2”~56”

2 - Pressure：PN6~PN40 Class 150~Class900 3 - Material：WCB(A105), WC6, WC9, LCB, CF8(304), CF8M(316), CF3(304L), CF3M(316L) 4 - Sealing material：Hard alloy or special treatment 5 - Connection methord: Flange, wafer, welded type can be choosed.

6 - Driving method : pneumatic, electric, hydro electric actuator can be choosed 7 - Design standard : ASME or DIN standard

Application Steel industry This semi-ball valve is widely used for dust removeal system of steel industry Natural alkali industry : This semi-ball valve is widely used in the following position: 1 - Inlet and outlet of pumps for Ammonia water I and Ammonia water II beside carbonating tower 2 - Inlet and outlet of mother liquor I and mother liquor II pumps .

3 - Installation on the pipe under the cabonation tower to control of shut off the secondary salt solution .

Company Contact:

• Posted By: Henan Quanshun Flow Control Science&Technology Co.,Ltd

• Phone: +86-18003823620

• Address: No.28 , Huagong Road, Zhengzhou , Henan , China

• Email:

• Website: http://www.qslk.cn

• Business Description: Henan Quanshun Flow Control Science & Technology Co., Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve , rotating ball valve , ball valve, control valve, butterfly valve, gate valve, check valve and others.

  Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.

  Our Products:

  - bidirectional rotary ball valve

  - eccentric semi ball valve

  - ball segment valve

  - slurry valve

  - dumping valve
