Gl Series Discharge Valve Suitable For Fine Chemical And Pharmaceutical - China

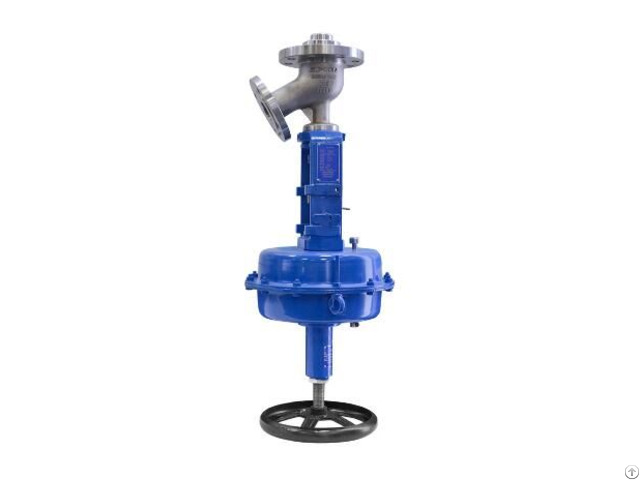

GL series up-spreading/down-spreadi ng discharge valve is a special single seat regulating valve, the valve body adopts integrated dc y-type structure, the valve chamber has no blocking channel, the internal surface is sandblasting treatment, the valve has no dead Angle, suitable for fine chemical, pharmaceutical and other industries to easy to precipitate or contain particles of fluid on and off control, Discharge Ball Valve

Discharge Valve TECHNICAL PARAMETERS

Nominal Size 40*50/50*80/65*80/80*100* 150/150*200

Pressure Rating PN6/PN10/PN16;CL150(PN20)

Operateing Temperature -17℃~200℃

Characteristics Quickly open

Rangeability /

Seat Leakage Class ANSI B16.104: IV, V, VI

Body Material WCB/WCC/LCB/LCC;WC6/WC9;C F8/CF8M;4A/5A etc.

Trim Material 304+ST/304+RTFE etc.

Seal Material PTFE, Flexible graphite

Company Contact:

• Posted By: Zhejiang SUPCON Fluid Technology Co., Ltd.

• Phone: 86 571 81119774

• Address: SUPCON Park, No.309 Liuhe Road, Binjiang District, Hangzhou , zhejiang , China

• Email:

• Website: https://www.supconvalve.com/

• Business Description: Company Profile

  Founded in March 1993, SUPCON is one of China's leading manufacturer and supplier of automation and information technology, products and solutions.

  Its automation products and solutions are applied in over 35 countries and regions worldwide.

  Zhejiang SUPCON Fluid Technology Co., Ltd. is an important member of the SUPCON Group.

  Our core products, industrial process control valves (Globe Valve, Ball Valve, Eccentric Rotary Valve and Butterfly Valve).

  Our company has a field experienced and strong technical team, and also committed to the development of stringent complex working condition control valve, to solve high pressure, corrosion, flash, erosion, large differential pressure and a series of technical problems.

  Our company is committed to providing users with international competitiveness of high quality product and comprehensive technical services in oil and refinery, petrochemical, coal chemical, fine chemical, metallurgy and so on.

  Company Culture

  SUPCONS mission:

  Make work and life easier

  SUPCONS vision:

  Leave a deep footprint upon Chinese development

  SUPCONS core values:

  Creating value for our customers, persist in struggle and innovation,

  respect-work and integrity, and striving for excellence.

  SUPCON Fluids Objective:

  To become a first-class intelligent control valve and solution provider

  The company is specialized in producing bellows single-seat control valve, Double seated valve, Cryogenic control valve and soon
