Gate Valve Seat - China

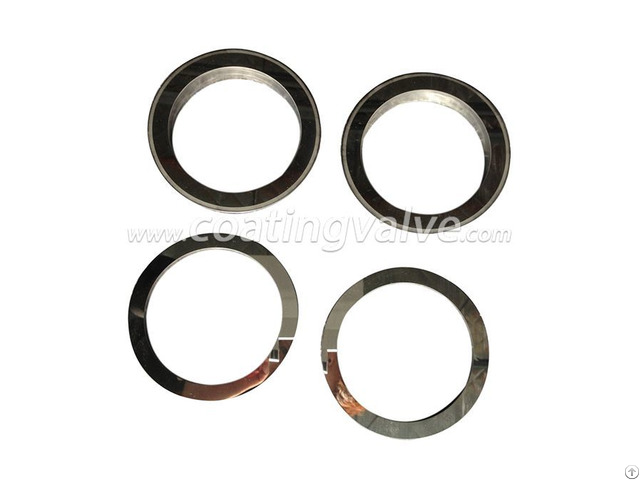

Gate Valve Seat

valve seat

Valve Seat: The detachable surface parts in valve are used to support the valve spool in the fully closed position and constitute a sealed part.

Generally, valve seat diameter is the maximum flow diameter of the valve.

PRODUCT PARAMETERS FOR Stainless Steel Valve Seats Valve Seat: The detachable surface parts in valve are used to support the valve spool in the fully closed position and constitute a sealed part.

Generally, valve seat diameter is the maximum flow diameter of the valve.

Elastic sealing material and small actuator's thrust force is used to obtain tight seal of air bubble, compression valve seat's sealing stress elastically deforms the material and squeezes it into the rough surface of the matching metal part to block all leakage paths.

The permeability of material is a basis for small amount of leakage for fluid.

The seal must be carefully fixed to prevent cracking and air leakage due to differential pressure.

Bonding soft valve seat to metal part is one way, but it cannot completely solve the problem because the bond breaks and fails when exposed to thermal shock.

A sufficiently large pressure drop will destroy the bonding material.

Thermal spraying technology ultrasonic spraying equipment is used to optimize thermal spraying process so that the denseness of coating can meet the gas sealing requirements under up to 140MPa, the porosity of coating <1%, the bonding strength exceeds 75MPa, the hardness can reach HV1500 and the hardness uniformity fluctuates by no more than HV100; the product surface after coating can reach mirror surface, with roughness less than Ra0.1, and flatness no more than 2 bands, which can effectively reduce the coefficient of friction between

Company Contact:

• Posted By: Suzhou Kaitianfu Machinery Co., Ltd

• Phone: 86-0512-66532885

• Address: Linhu Cailian Industrial Park, Wuzhong District, Suzhou , Jiangsu , China

• Email:

• Website: https://www.coatingvalve.com

• Business Description: Suzhou Kaitianfu Machinery Co., Ltd. was established in January 2011, which is located in Wuzhong District, Suzhou City, Jiangsu Province, close to Taihu Lake .

  The scenery is beautiful and pleasant.

  We hold the business philosophy "customer first, Integrity management, social service ", adhere to the " Providing perfect service, Creating value, Achieving win-win " enterprise tenet .

  With advanced equipment, superb technology and perfect service we are rapidly rising in API6A series products and the thermal spray area , and have won good reputations in industries.

  We have been mainly engaged in thermal spraying API6A series products(for example, GATE and SEAT) and various mechanical parts.

  Our products is widely used in areas of the petroleum, natural gas, chemical industry, papermaking, electronic power , etc.

  We are especially good at machining and spraying of valve parts to achieving wear-resistance, corrosion-resistance, high temperature-resistance based on different working conditions.

  To ensure the quality of products, we continuously introduce advanced technology and equipment.

  Now our company has been equipped with the advanced HVOF JP8000 which is made in USA, the robot's automatic control system, various types of CNC machine, grinding equipment, polishing equipment and other processing equipment.

  We can effectively control the quality of products with a full range of testing equipment, such as hardness tester, temperature measuring instrument, coating thickness tester, roughness tester, flatness instrument, etc.

  We carefully selecte high-quality coating materials to provide customers with first-class products.
