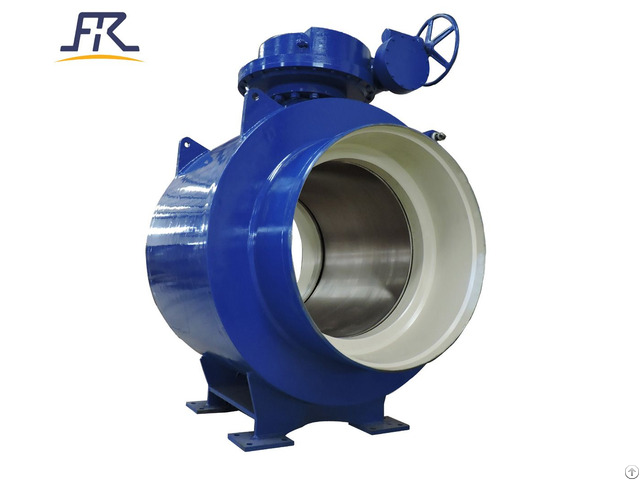

Full Bored Ball Valve - China

FREE-VALVE’s Full bored ball valve are widely used in almost all the industry .

Compared to the general casting ball valve, fully welded ball valve have a highly performance and longer life time .

It was widely used in city gas, city heat supply, oil chemical industry, ship building, steel, power plant etc .

Full bored ball valve can be reliable run in the long time, easy to be installed and less maintenance work .

Benefits

1 - Valve body material is the same as the pipe material, so they will not occur transformation due to unbalanced stress .

2 - Face to face dimensions can be made according to customer requirement.

3 - Material of valve seat is made up of PTFE with 20%C sealing ring and metal sealing, which can adapt to the change of pressure and temperature, So the leakage will not occur during the pressure and temperature Range.

4 - The ball body has a highly machining precision due to the tracking of computer detector, so the ball valve was shut off/shut on conveniently.

5.

Specification Type : FRQ61FC, FRQ361FC

Size Range: NPS2~NPS48, DN50 ~DN1200

Pressure Range : Class150~Class600, 1.6MPa~4.0MPa

Body Material : A105, F304, F316

Connect Method : weld

Work Temperature: -29℃≤t≤ 180 ℃

Design standard: ASME B16.34, API6D

Test and Inspect: API598

Face to Face: GB/T12221, ASME B16.10

Medium : Water, oil, gas, acid, alkali etc Driving method : electric, handle, worm gear etc .

Application industry

centralized heating, coal gas pipe, waste gas treatment system, heat supply system
