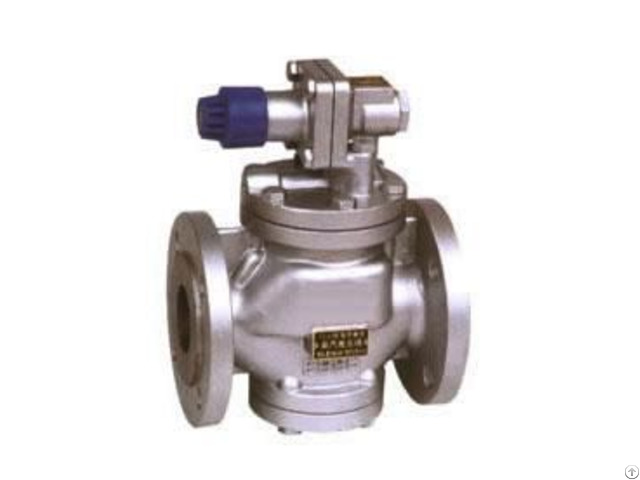

Flanged Rp 6 Steam Pressure Reducing Valve Prv Wcb - China

China Flanged Steam Pressure Reducing Valve Manufacturer Shinjo Supplies Flanged Steam Pressure Reducing Valve, WCB Valve Body, Bonnet, Bottom Cap.

Performance:

Nominal Pressure: 1.0, 1.6 MPa.

Casing Body Test Pressure: 1.5, 2.4 MPa.

Sealing test pressure: 1.0, 1.6 MPa.

Max.

Inlet Pressure: 1.0, 1.6 MPa.

Outlet Presure Range: 0.04-0.60, 04-1.0 MPa.



Min.

Pressure Difference: 0.05, 0.07 MPa.

Leakage Quantity: GB12245-1989.

Parts & Material:

Body, bonnet, bottom cap: WCB.

Seat, Plug: 410 S.S.

Cylinder sleeve, Piston: Al-Fe bronze

Diaphragm: PH15-7Mo.

Piston Ring: PPL.

Pilot Seat, pilot Plug: 410 S.S.

Spring: ASTM 6150.

Pilot Main Spring: ASTM 6150.

Adjust Spring: UNS G92600.

Flow Coefficient (Cv):

DN: 15, 20, 25, 32, 40, 50, 65, 80.

Cv: 1, 2.5, 4, 6.5, 9, 16, 25, 36
