Electric Valve Positioner - China

It can be composed of a regulating valve (for example, throttle and plate) drive device with different actuator such as TOYI, UNIC, 3410, 3610, NA, HQ, PSQ and so on.

1 - Control accuracy: 0.1%-3.0% (adjustable);

2 - Electric actuator feedback signal can be connected: potentiometer 500Ω-10KΩ

3 - External control signal can be connected: 4 —20mA, the other input signals are set before the product left from the factory.

4 - Actuator forward and reverse action mode and "interrupt" mode can be set—OPEN, STOP, SHUT;

5 - Whether to allow e-brake can be set;

6 - SCR output: AC, 1200V, 25A;

7 - The output of the actuator position signal: low drift output 4-20mADC corresponding actuator is fully closed to fully open, the signal is completely isolated from the input;

8 - Environment temperature: 0-70°C (optional); Humidity: less than 90%RH;

9 - Overheat protection function;

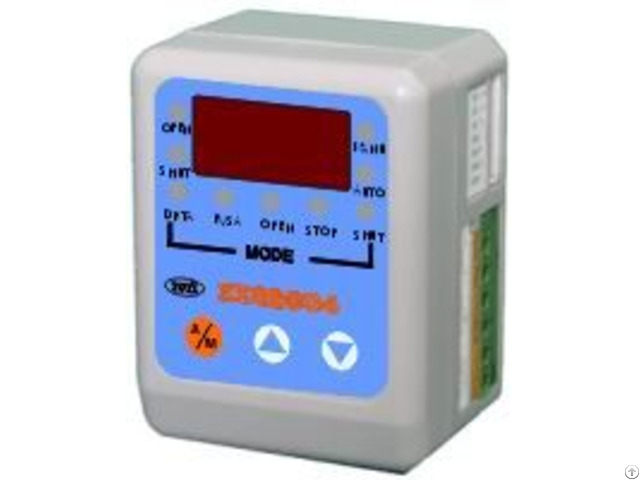

10 - ZXQ2004 dimension: 62mm (underside length) x48mm (underside width) x26mm (height)

11 - The input signal corresponding actuator moves interval can be calibrated freely by button(Generally calibrating in the electric actuator fully closed and fully open position);

12 - Manual / automatic switching without disturbance;

13 - Control function of the actuator locked-rotor detecting;

14 - Allowing to changing the precision or reset time;

15 - Combination lock to prevent misuse;

16 - Make intelligent steps adjustment and locate precisely according to the input signal and actuator corner position.

17 - Indicate the cause of the problem by error codes.

18 - Special requirements can be satisfied.
