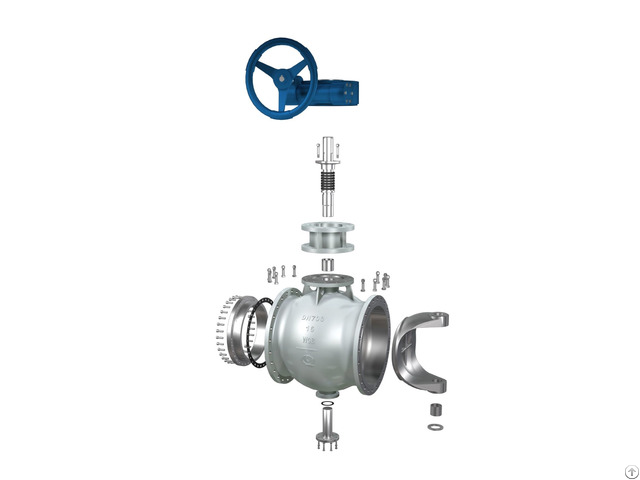

Eccentric Semi Ball Valve - China

Eccentric semi-ball valve is a kind of new developed ball valve which is specialized in solving the technical problems during “solid-gas” and “liquid-gas” fluids medium conveying.

It is mainly used for cutting off, regulating or changing the direction of medium in the pipeline.

Eccentric semi-ball valve is widely used in steel mill, alumina plant, soda plant, water works and so on.

Benefits

1 - With straight through type valve body, this valve can keep the medium flow by linear when the valve fully opened, so it reduced less energy loss compared with other valves.

2 - Easy to operate: As the valve disc moved away from valve seat without any contact, so it has smaller starting torque compared with O type ball valve and easy to operate.

3 - Because of double eccentric structure design, the semi-ball valve is perfectly sealed and can be closed tightly .

4 - When the valve is closed, the wedding force is able to remove the foreign materials, therefore it has anti-scaling performance.

Technical Specification

1 - Size： DN40~DN1400 2”~56”

2 - Pressure：PN6~PN40 Class 150~Class900

3 - Material：WCB(A105) , WC6, WC9, LCB, CF8(304), CF8M(316), CF3(304L), CF3M(316L)

4 - Sealing material：Hard alloy or special treatment

5 - Connection methord: Flange, wafer, welded type can be choosed.

6 - Driving method : pneumatic, electric, hydro electric actuator can be choosed

7 - Design standard : ASME or DIN standard

Application

Steel industry

This semi-ball valve is widely used for dust removeal system of steel industry

Natural alkali industry : This semi-ball valve is widely used in the following position:

1 - Inlet and outlet of pumps for Ammonia water I and Ammonia water II beside carbonating tower

2 - Inlet and outlet of mother liquor I and mother liquor II pumps .

3 - Installation on the pipe under the cabonation tower to control of shut off the secondary salt solution .

Coal chemical industry

The valve is usually used for high or low pressure coal slurry pump, ash water pump, chilling water pump and black water pipes.

Alumina Industry
