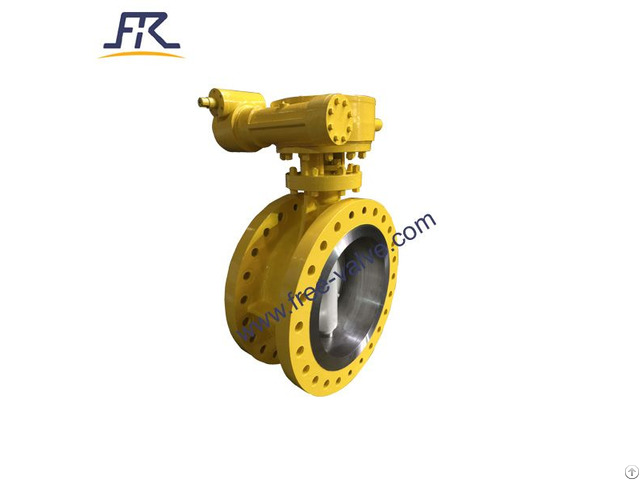

Double Offset High Performance Butterfly Valve - China

FREE-VALVE’s double offset design of high performance butterfly valves assure reduced seat wear and bidirectional, zero leakage shut off throughout the full pressure range.

It is divided into hard to hard sealing or hard to soft sealing with two structures according to sealing surface material of the disc and seat.

The butterfly valve can realize rotary under the condition of low torque by the resilient-seated design, which means a longer service life, so as to cost-effective of choosing actuator.

Features 1 - The valve seat material is divided into metal seat and soft seat, which makes the valve suitable for liquid or gas service with many applications.

2 - The seat can be replaced by loosening the seat ring bolts, saving the cost of the valve.

3 - The resilient-seated design ensures minimal seat wear and double offset disc design provides excellent throttling capabilities, it has characteristic of super long usage life, friction less closure etc.

4 - Blowout proof shaft design and the application of self lubricated bearings.

5 - Preventing the disc from closing under over/under travel by adjusting mechanical stopper.

6 - Disc sealing surface adopts spherical edge design.

7 - Bidirectional equal seal, zero leakage.

8 - According to the requirements of medium conditions, overlaying or spray welding different sealing materials on the sealing surface of the valve disc, such as STL, tungsten carbide, Cr13.

Technical specifications 1) Size Range：NPS2~NPS48, DN50~DN1200.

2) Pressure Range: Class 150~Class 300, PN10 ~PN40.

3)Body material: Carbon steel or stainless steel 4) Seat material: PTFE and graphite PTFE, metal

5) Working temperature≤250°C

6) Connection method：Flange, wafer.

7) Operating method：Worm gear, electric, pneumatic .

8) Pressure test: GB/T13927; API598.

9) Face to Face: GB/T12221; API609 - Application FREE-VALVE’s lug type high performance butterfly valves are used in chemical, petroleum, natural gas, refining, power plants, water distribution, water treatment, pre-treated, waste water, industry and pressure management and the role of regulating valve.
