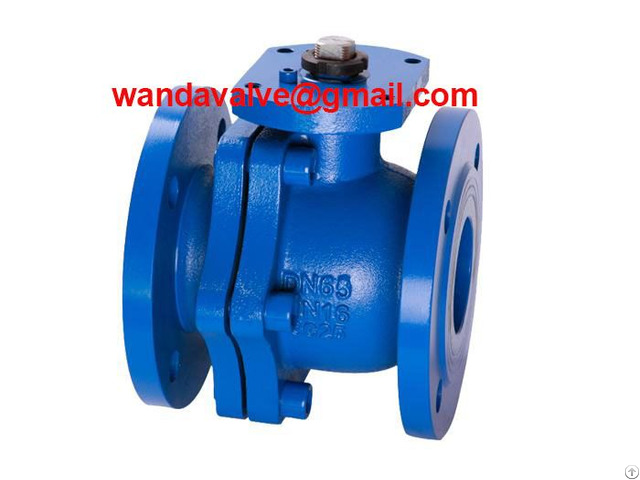

Din Pn16 Cast Iron Ball Valve - China
price: 22.00 Dollar US$
Specification Details Design Std: DIN3357
Size: DN15--DN300
Micro-finishing of disc and steam
Pressure Rating: PN16
BODY: GG25, GGG40
Seat: Seat: PTFE, RPTFE
Face to Face: DN15-DN100(F4), DN125-DN300(F5)
Pressure Testing: ISO5208, DIN3220
Top Mounting Flange: ISO 5211
Working temperature: -20 to +120°C>
Valve Description The DIN ball valve is a full bore quarter turn valve for an on/off application.
It can be manual or automatic (electric or pneumatic).
The variety of seats and body materials allows it to respond to multiple applications in the industry.
Company Contact:
- Posted By: Zhejiang Wanda Valve Co Limited
- Phone: +8657181370072
- Address: Gaoxin Avenue, Yongqiang Rd. Longwan Area, Wenzhou, China, Wenzhou , Zhejiang , China
- Email:
Published date: December 1, 2017
- Business Description: Wandavalve is one of the most important manufacturers of water valves in the China with experience dating back over 20 years.
Its success story began in 1994 when Steven Li founded a small workshop in Wenzhou, China.
Presently, the scope of Wanda Valve supply products including following(but not limited below): -
Wafer butterfly valve, Lug Butterfly valve, Flanged Butterfly valve
Resilient seat gate valve, Metal seat gate valve
Cast Iron Ball Valve, Cast Steel Ball valve, Stainless Steel Ball Valve
Cast Iron Globe Valve, Cast Steel Globe valve, Stainless Steel Globe Valve
Cast Iron Check Valve, Cast Steel Check valve, Stainless Steel Check Valve
DIN Y Strainer, ANSI Y Strainer
Our products are widely used in the irrigation, potable water and waste water systems and infrastructure equipment fields, oil gas, chemicpetrol etc.
