Din Pn10 Cast Iron Lug Ball Valve - China
price: 43.00 Dollar US$

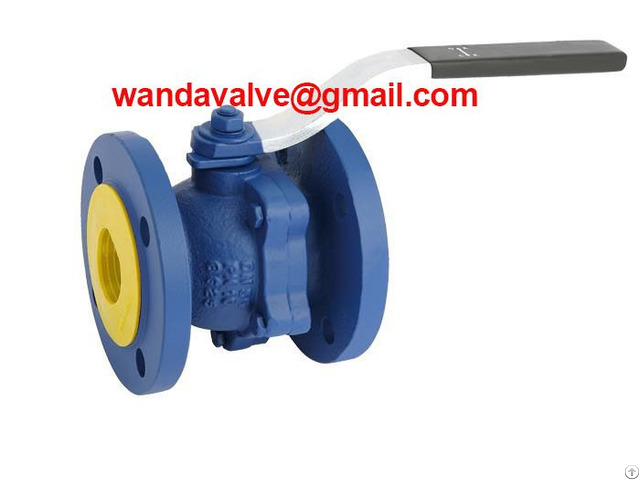

2-Piece, Full Port, Cast Iron Flanged Ball Valves
Body: Cast iron/Ductile iron
Nut/bolting: Carbon Steel
Ball: Stainless Steel 304
Seat: PTFE
Stem: SS304
Lever: Ductile Iron(GGG40)
Operation: Handle lever/gear box/actuators
Size: DN25~DN250
Pressure: PN10/16
Standard:
Working temperature: -20 ° C ~ +120 ° C
Face To Face: DIN3202 DN15-DN100 DIN3202 (F4)
DN125-DN250 DIN3202 (F5)
End Flange Dimensions: EN 1092-2 etc.
Testing: DIN3230, API598
Medium: Water, oil, gas etc.
Company Contact:
- Posted By: Zhejiang Wanda Valve Co Limited
- Phone: +8657181370072
- Address: Gaoxin Avenue, Yongqiang Rd. Longwan Area, Wenzhou, China, Wenzhou , Zhejiang , China
- Email:
Published date: December 1, 2017
- Business Description: Wandavalve is one of the most important manufacturers of water valves in the China with experience dating back over 20 years.
Its success story began in 1994 when Steven Li founded a small workshop in Wenzhou, China.
Presently, the scope of Wanda Valve supply products including following(but not limited below): -
Wafer butterfly valve, Lug Butterfly valve, Flanged Butterfly valve
Resilient seat gate valve, Metal seat gate valve
Cast Iron Ball Valve, Cast Steel Ball valve, Stainless Steel Ball Valve
Cast Iron Globe Valve, Cast Steel Globe valve, Stainless Steel Globe Valve
Cast Iron Check Valve, Cast Steel Check valve, Stainless Steel Check Valve
DIN Y Strainer, ANSI Y Strainer
Our products are widely used in the irrigation, potable water and waste water systems and infrastructure equipment fields, oil gas, chemicpetrol etc.
