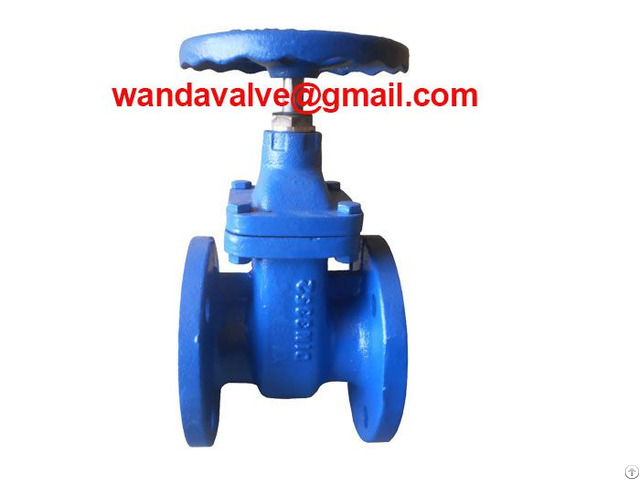

Din F4 Metal Seated Gate Valve - China
price: 34.00 Dollar US$
Specification Details Design Std: DIN 3352
Size: DN40--DN300
Pressure Rating: PN16, PN10
Seat: Brass, Bronze
Wedge Cast Iron EN-JL1040
Face to Face: DIN 3202 F4
Pressure Testing: DIN EN593/DIN EN12266-1
Body Cast Iron EN-JL1040
Flange Ends: EN1092-2
Working temperature: -10°C/+120° C
Valve Description Metal Seated Gate Valves are manufactured to DIN3202 F4 & coated with a tough thermally bonded acrylic coating certified to PED97/23/EC for used for pipeline isolation, suitable for potable water, wastewater and sewage duties and buried service.
Company Contact:
- Posted By: Zhejiang Wanda Valve Co Limited
- Phone: +8657181370072
- Address: Gaoxin Avenue, Yongqiang Rd. Longwan Area, Wenzhou, China, Wenzhou , Zhejiang , China
- Email:
Published date: December 1, 2017
- Business Description: Wandavalve is one of the most important manufacturers of water valves in the China with experience dating back over 20 years.
Its success story began in 1994 when Steven Li founded a small workshop in Wenzhou, China.
Presently, the scope of Wanda Valve supply products including following(but not limited below): -
Wafer butterfly valve, Lug Butterfly valve, Flanged Butterfly valve
Resilient seat gate valve, Metal seat gate valve
Cast Iron Ball Valve, Cast Steel Ball valve, Stainless Steel Ball Valve
Cast Iron Globe Valve, Cast Steel Globe valve, Stainless Steel Globe Valve
Cast Iron Check Valve, Cast Steel Check valve, Stainless Steel Check Valve
DIN Y Strainer, ANSI Y Strainer
Our products are widely used in the irrigation, potable water and waste water systems and infrastructure equipment fields, oil gas, chemicpetrol etc.
