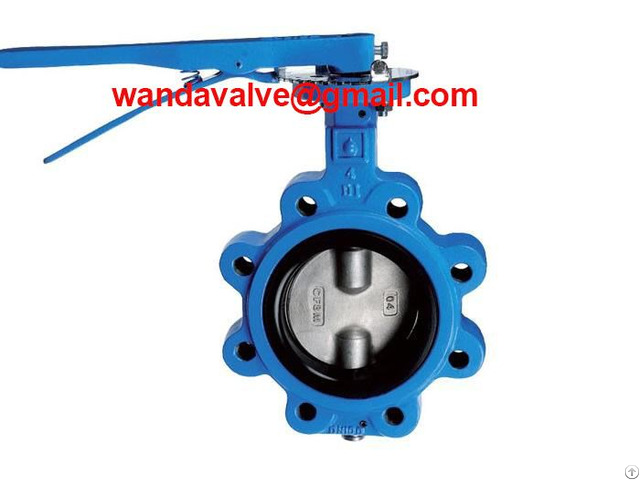

Din Cast Iron Lug Butterfly Valve - China
price: check with company for price
Specification Details Design Std: EN 1074, EN593
Size: DN25--DN300
Micro-finishing of disc and steam
Pressure Rating: PN10, PN16
Seat: NBR, EPDM, VITON, PTFE, NEOPRENE
Face to Face: EN 558-1 Series 20 -(former DIN 3202-K1)
Pressure Testing: DIN EN593/DIN EN12266-1
Top Mounting Flange: ISO 5211
Working temperature: EPDM from -40°C to +135°C ; NBR from -23°C to +82°C; VITON from -26°C to +230°C; PTFE from -25°C to +150°C
Valve Description Ductile iron Lugged Butterfly Valve with concentric disc, seal on body design.
Designed and manufactured in accordance with DIN EN 593 .
Bi-directional bubble tight seal, vulcanised seat, suitable for vacuum applications.
High strength one-piece shaft, suitable for high repetition actuation
Company Contact:
- Posted By: Zhejiang Wanda Valve Co Limited
- Phone: +8657181370072
- Address: Gaoxin Avenue, Yongqiang Rd. Longwan Area, Wenzhou, China, Wenzhou , Zhejiang , China
- Email:
Published date: December 1, 2017
- Business Description: Wandavalve is one of the most important manufacturers of water valves in the China with experience dating back over 20 years.
Its success story began in 1994 when Steven Li founded a small workshop in Wenzhou, China.
Presently, the scope of Wanda Valve supply products including following(but not limited below): -
Wafer butterfly valve, Lug Butterfly valve, Flanged Butterfly valve
Resilient seat gate valve, Metal seat gate valve
Cast Iron Ball Valve, Cast Steel Ball valve, Stainless Steel Ball Valve
Cast Iron Globe Valve, Cast Steel Globe valve, Stainless Steel Globe Valve
Cast Iron Check Valve, Cast Steel Check valve, Stainless Steel Check Valve
DIN Y Strainer, ANSI Y Strainer
Our products are widely used in the irrigation, potable water and waste water systems and infrastructure equipment fields, oil gas, chemicpetrol etc.
