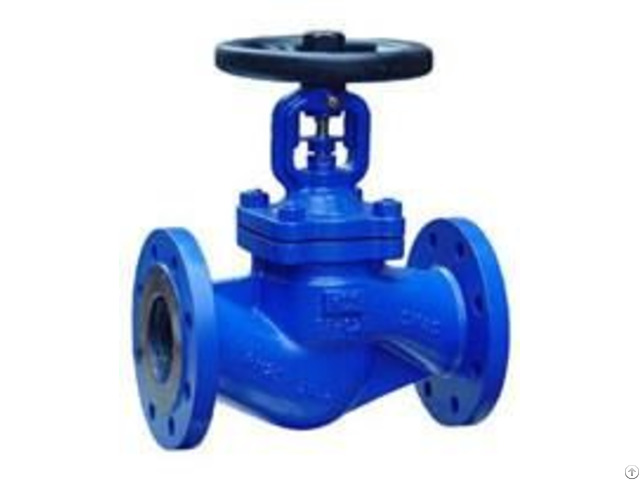

Din Bellow Seal Globe Valve Pn16 Pn25 Pn40 Gs C25 Body - China
price: contact company for price
China DIN Bellow Seal Globe Valve Manufacturer Shinjo Supplies DIN Bellow Seal Globe Valve, PN16, PN25, PN40, GS-C25 1.7363, 1.4308, 1.4408, 1.4306, 1.4301 - Parts & Material:
1 - Body: GS-C25 1.7363, 1.4308, 1.4408, 1.4306, 1.4301
2 - Disc: ASTM A182-Gr.
F6a, ASTM A182-F22, ASTM A182-F304, F316, F321, F304L, F316L.
3 - Pin: ASTM A182-Gr.
F6a ASTM A182-F22 ASTM A182-F304, F316, F321, F304L, F316L.
4 - Bellow assemble: 321 S.S., 304, 316.
5 - Stem: ASTM A182-Gr.
F6a, ASTM A182-F22, ASTM A182-F304, F316, F321, F304L, F316L.
6 - Bonnet: GS-C25 1.7363, 1.4308, 1.4408, 1.4306, 1.4301.
7 - Packing: Flexible graphite, PTFE.
8 - Gland: GS-C25 1.7363, 1.4308, 1.4408, 1.4306, 1.4301.
9 - Guide piece: 25, 45, 304, 316.
10 - Yoke nut: ZQA19-4.
11 - Hand wheel: WCB, QT400-18.
12 - Bolt: ASTM A193-B7, A193-B8, A193-B8M.
13 - Nut: ASTM A194-2H, A194 -8, A194-8M.
14 - Gasket: Flexible graphite + stainless steel, PTFE.
Company Contact:
- Posted By: Shanghai Shinjo Valve Co., Ltd.
- Phone: 86-21 5620 6641
- Address: No 150, Honxing Road, Shanghai, China., Shanghai , Shanghai , China
- Email:
- Website: http://www.shinjovalve.com/
Published date: January 12, 2017
- Business Description: Shanghai Shinjo Valve Manufacturer is specialized in producing various industrial valves: Ball Valves, Check Valves, Gate Valves, Globe Valves, Plug Valves, Butterfly Valves, Safety Valves, Hydraulic Control Valves, Control Valves, Pressure Reducing Valves, Needle Valves, Cast Steel Valves, Forged Steel Valves, Balance Valves, Diaphragm Valves, Blind Valves, Lined Valves Series and types of Pumps.
Products are widely applied in oil gas, chemical, electric power, shipping, mining, water treatment industrial system etc.
