Ceramic Lined Composite Pipe And Elbow - China
price: 200.00 Dollar US$

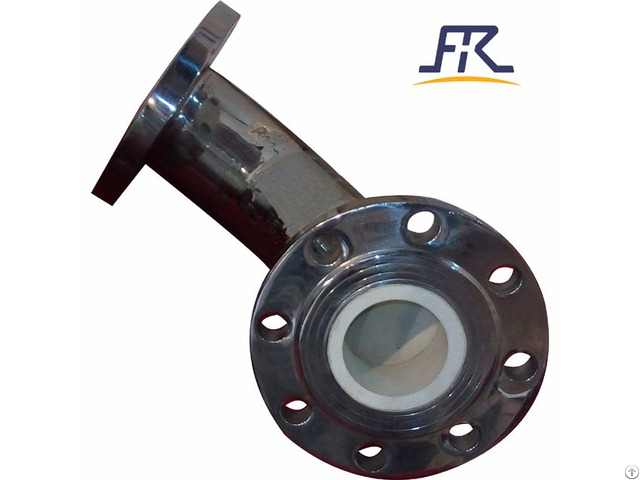

Ceramic Lined Composite Pipe and Ceramic Elbow
FREE-Valve’s Ceramic Lined Composite Pipe and Ceramic Elbow include elbow, short section, Tee joint, reducer etc, which are widely used in the powder of pneumatic conveying and pumping conveying .
Due to the large abrasives, high hardness, high speed, large flow rate of medium, the ceramic ring lined composite pipes can greatly prolong the speed of pipes wear out .
Features
1 - Ceramic lined steel pipe has strong wear resistance performance and anti
-erosion capacity.
2 - With Smooth inner wall, will not blocked by the powder medium .
3 - Good anti-abrasive performance, longer working life time
Technical Specification
The standards of flange ends ASME B16.5, GB/T9113
Nominal Pressure 1.0MPa, Class150
Size Range DN50~DN 300, NPS2 ~NPS12
Connection type Flange/ Welding
Working Temperature ≤200℃
Pipe material Engineering ceramic+ Steel Application:
1 - Slag draining, ash removal, powder feeding and back powder systems in power plants.
2 - Iron alloy conveying of steel-making, slag conveying pipeline, external refining and so on in steel plant.
3 - LiCoO2 powder, raw slurry conveying in cement plant, coal powder conveying, concrete conveying pipe.
Company Contact:
- Phone: 8637155019379
- Address: No.93 Zizhu Road, High-Tech Development Zone, Zhengzhou , Henan , China
- Email:
- Website: https://www.free-valve.com
Published date: December 1, 2017
- Business Description: Zhengzhou Free Fluid Control Technology Co., Ltd is leading designer and supplier of high-quality industrial valves, for industries ranging from Coal Washing Plant , Power Plant , Alumina Refinery, Steel Plant, Petro-Chemical, Waste Water, Potable Water among others for global markets.
