Ceramic Ball Valves - China
price: 2000.00 Dollar US$

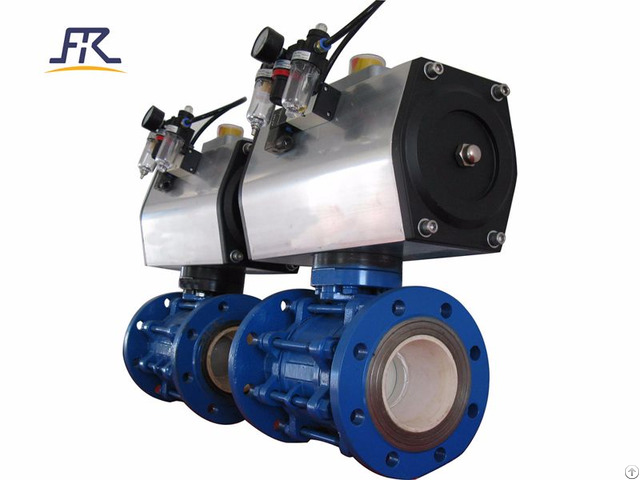

Ceramic Ball Valves
FREE- Valve’s Ceramic Ball Valves are designed with engineering ceramics the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open & close function as well as a throttling control tasks in corrosive medium with abrasive solids content.
Features:
1 - The hardness of the ceramic material can be higher than HRC80.
2 - Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.
3 - Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic, electric and hydraulic actuators
4 - Customized V type ceramic control valve is also available for us.
5 - The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.
Technical Specification The standards of flange ends ASME B16.5, GB/T9113
Nominal Pressure 1.0MPa, Class150
Size Range DN50~DN 200, NPS2 ~NPS8
Connection type Flange
Working Temperature ≤200℃
Operating Type Manual, Pneumatic and Electric
Sealing surface material Engineering ceramic
Pressure test GB/T13927, API598
Face to Face GB/T12221, API609
Company Contact:
- Phone: 8637155019379
- Address: No.93 Zizhu Road, High-Tech Development Zone, Zhengzhou , Henan , China
- Email:
- Website: https://www.free-valve.com
Published date: December 1, 2017 - Modified date: December 26, 2017
- Business Description: Zhengzhou Free Fluid Control Technology Co., Ltd is leading designer and supplier of high-quality industrial valves, for industries ranging from Coal Washing Plant , Power Plant , Alumina Refinery, Steel Plant, Petro-Chemical, Waste Water, Potable Water among others for global markets.
We provide comprehensive “Fluid Control Solutions” for customers
