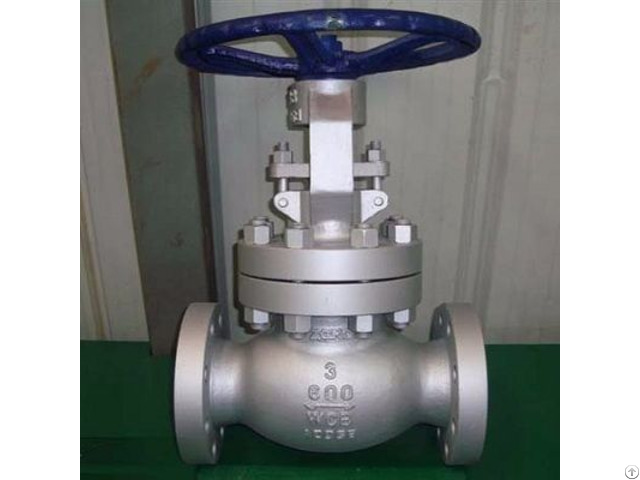

Cast Steel Globe Valve Class 600 Lb A216 Wcb Bs 1873 - China
price: contact company for price
China Class 600 LB Cast Steel Globe Valve Manufacturer Shinjo Supplies Class 600 LB Cast Steel Globe Valve, ASTM A216 GR WCB, BS 1873 / ASME B16.34 - Parts & Materials
1 - Body: ASTM A216 GR.
WCB.
2 - Seat Ring: ASTM A105 + Stellite Faced.
3 - Disc: ASTM A105 + 13Cr Faced.
4 - Disc Thrust Plate: ASTM A276 Type 420.
5 - Disc Nut: ASTM A276 Type 410.
6 - Stem: ASTM A182 GR.
F6.
7 - Bonnet Bolt Nuts: ASTM A194 GR.
2H.
8 - Bonnet Bolts: ASTM A193 GR.
B7.
9 - Gasket: Soft Iron + Graphite.
10 - Backseat Bushing: ASTM A276 Type 410.
11 - Stem Packing: Braided Graphite & Die formed Graphite Ring.
12 - Bonnet: ASTM A216 GR.
WCB.
13 - Eyebolt Pins: Carbon Steel.
14 - Gland: ASTM A276 Type 410.
15 - Gland Flange: ASTM A216 GR.
WCB.
16 - Gland Eye Bolts: ASTM A307 GR.B.
17 - Eyebolt Nuts: ASTM A194 GR.
2H.
18 - Yoke Bush: ASTM A439 GR.
D-2.
19 - Screw: Carbon Steel.
20 - Hand Wheel: Ductile Iron.
21 - Hand Wheel Nut: ASTM A194 GR.
2H.
22 - Washer: Carbon Steel.
23 - Yoke: ASTM A216 GR.
WCB.
24 - Yoke Pan Bolt Nuts: ASTM A194 GR.
2H.
25 - Yoke Pan Bolt: ASTM A193 GR.
B7.
26 - Bearing: Steel.
27 - Lantern Ring On Request: ASTM A276 Type 410.
Company Contact:
- Posted By: Shanghai Shinjo Valve Co., Ltd.
- Phone: 86-21 5620 6641
- Address: No 150, Honxing Road, Shanghai, China., Shanghai , Shanghai , China
- Email:
- Website: http://www.shinjovalve.com/
Published date: January 12, 2017
- Business Description: Shanghai Shinjo Valve Manufacturer is specialized in producing various industrial valves: Ball Valves, Check Valves, Gate Valves, Globe Valves, Plug Valves, Butterfly Valves, Safety Valves, Hydraulic Control Valves, Control Valves, Pressure Reducing Valves, Needle Valves, Cast Steel Valves, Forged Steel Valves, Balance Valves, Diaphragm Valves, Blind Valves, Lined Valves Series and types of Pumps.
Products are widely applied in oil gas, chemical, electric power, shipping, mining, water treatment industrial system etc.
