Api Trunnion Two Piece Ball Valve - China

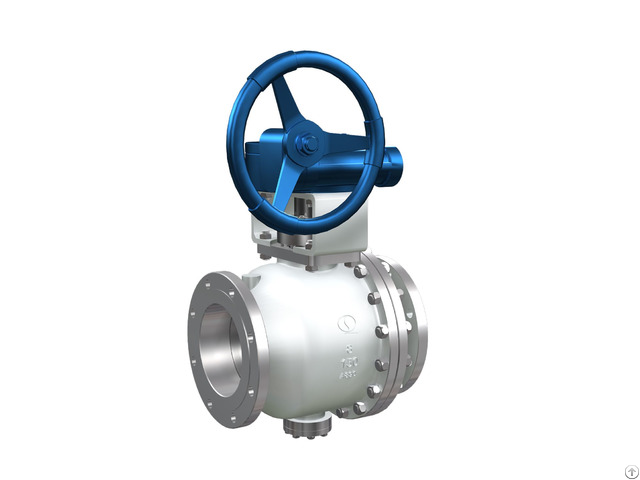

API Trunnion Two-piece Ball Valve is mainly used to control the pipeline and medium.

The fixed ball valve is a kind of common valve applied in the condition with high pressure and large diameter for the medium like water, steam, oil and other kind of corrosive medium.

BENEFITS 1 - Produced with full bore and necking design, the fixed type ball valve is offered in two-piece design.

2 - Designed in fixed structure, the double-side sealing can be realized.

3 - The trunnion valve stem design make it can bear higher presssure .

4 - Since the valve seat is manufactured with fireproof structure, in case of fire, the flange connection fixed is safe and reliable due to outstanding sealing performance.

5 - Offered with spring-plunger type static extraction there is a static access formed between the ball and stem and valve body and stem to avoid the accumulation of the static.

TECHNICAL SPECIFICATION Size：2”~16”

Pressure：Class 150~Class 300

Structure Type：Trunnion type

Material of Valve Body：WCB(A105), WC6, WC9, CF8(304), CF8M(316), CF3(304L), CF3M(316L)etc.

Material of Sealing Surface：PTFE, Hard Alloy, etc.

Connection method ：Flange

Driving Method : Manual drive, Electric drive or Pneumatic drive

Design standard：ASME B16.34, ASME B16.10, ASME B16.5, ASME B16.25 - APPLICATION INDUSTRY Chemical industry

Polysilicon industry

Power industry

Water industry
