Api Mud Pump Valve Assy - China

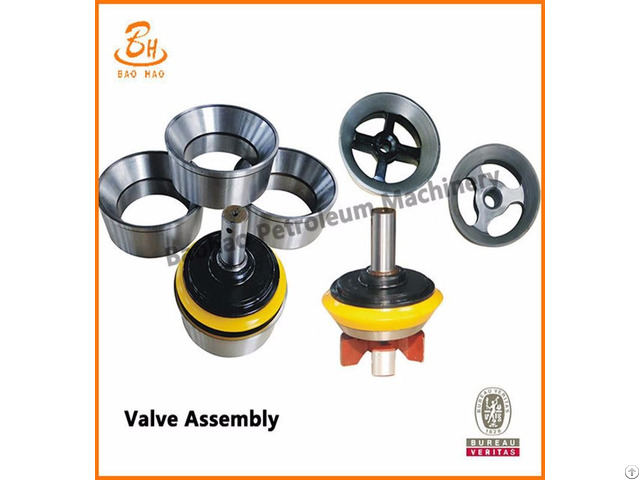

Valve Assembly Component:

The valve assembly comprises a valve seat and a valve body assembly which comprising

a valve seat, valve body, valve guide, valve rubber, nut etc.

Function

Valve assembly is equivalent to a switch, the suction valve and discharge valve is opened

and closed alternately.

F series mud pump suction valve and discharge valve are interchangeable.

The service life of the valve rubber directly influences the service life of the valve body assembly.

Features:

1 - Forged alloy steel AISI 4119 construction

2 - Heavy-duty valve design

3 - Deep carburized wear surfaces

4 - Heavy-duty durable retainer threads

5 - Precise machined to API standards

6 - Taper post-heat treat machined to remove warpage

Different mud pump match different model of valve assembly:

1 - F500: API 5 valve

2 - F800 / F1000: API 6 valve

3 - F1300 / F1600: API 7 valve

Various sizes are available to fit all major mud pumps.

An extensive range of valves and

seats are offered, such as Premium Cross-Arms Valve and Seat, Three-arm Valve and Seat, Three-wing Valve, Four-wing Valve, Full-open Seat, Long-life Bonded Valve with Urethane.

Wide choices are available for requirements not met by hardened or stainless steel valves

and elastomer- valve seats.

We offer several different types of valve & seat combinations (full open, 4-web & 3-web).

Company Contact:

• Posted By: Baoji Baohao Petroleum Machinery Equipment Co., Ltd.

• Phone: +86 18391737507

• Address: Chencang Road, Baoji , Shaanxi , China

• Email:

• Website: http://www.baohaooilfield.com/

• Business Description: About our company

  Baoji Baohao Petroleum Machinery Equipment Co., Ltd., was founded in 2003, specializing in design, R&D, production of oil drilling equipment and technical services.

  Meanwhile, it is an independent import & export corporation.

  The pneumatic clutch and clutch spares, drilling mud pump parts, drawworks spare parts for oil drilling equipment we produced are served as designated products for many domestic famous professional oil equipment manufacturers, such as Sinopec, CNPC, Nanyang RG Petro-Machinery (Group) Co., Ltd., and Sichuan Honghua Petroleum Equipment Co., Ltd. Besides, Baohao also exports products to many countries and regions such as USA, Russia, Turkish and Kazakstan.

  Glories of company

  The pneumatic clutch and clutch spares, drilling mud pump parts, drawworks spare parts for oil drilling equipment we produced are served as designated products for many domestic famous professional oil equipment manufacturers, such as Sinopec, CNPC, Nanyang RG Petro-Machinery (Group) Co., Ltd., and Sichuan Honghua Petroleum Equipment Co., Ltd. Besides, Baohao also exports products to many countries and regions such as USA, Russia, Turkish and Kazakstan.

  With its excellent and experienced technical team in petroleum machinery manufacturing as well as advanced machining and precision testing equipment, learning feedbacks from experience of use in site, continuously refines and improves product processing technology and product quality.

  Baohao strictly abides the GB/TI9001-2008-ISO9001-20 08 QMS, the Industry Standard SY5138-92, SY/T6760-2010 and American API Standard during the whole production process including the delicacy management of contract execution and monitoring over in-warehouse and ex-warehouse products.

  The good-quality products and service are highly commended by clients at home and abroad.
