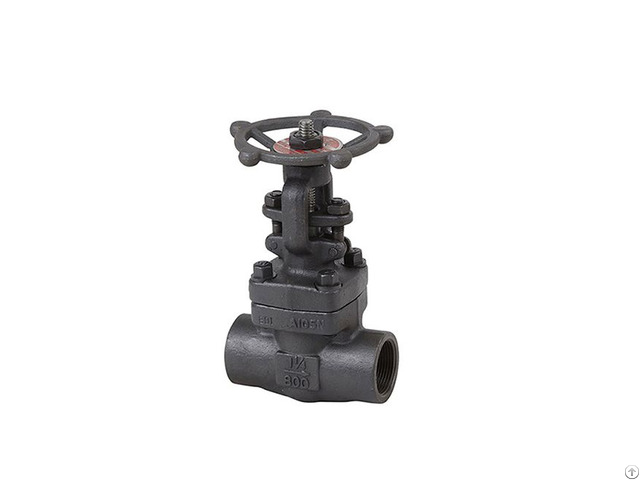

Ansi Forged Gate Valve - China
price: check with company for price
Application Standard: Design & manufacture: API 602 Design Pressure: ASME B16.34 Face to face: ASME B16.10 Flange ends: ASME B16.5 Buttwelding ends: ASME B16.25 Socket welding ends: ASME B16.11 Screw ends: ASME B1.20.1 Inspection & Test: API 598 Design description: Outside screw & yoke (OS&Y) Bolted bonnet Seat rings integral with body of lift Single wedge, fully guided Renewable seat ring Rising stem and Non-rising handwheel Ends: SW, BW, SC, Flange Flanged ends Main Parts and Materials Part name Material (ASTM A182) Body A105 F11 F22 F304 F316 F304L F316L 20-Alloy Bonnet A105 F11 F22 F304 F316 F304L F316L 20-Alloy Wedge A105+13Cr*1 F11+HF F22+HF F304 F316 F304L F316L 20-Alloy Stem F6a F11 F22 F304 F316 F304L F316L 20-Alloy Seat ring A105+13Cr*1 F11+HF F22+HF NA Bonnet Gasket 304+Graphite 316+Graphite 304L+Graphite 316L+Graphite Bonnet Bolt A193B7 A193B7 A193B16 A193B8 A193B8M Packing Graphite Graphite Graphite Graphite*2 Gland A276-410 A276-410 A276-410 A276-304 A276-316 A276304L 316L 20-Alloy Gland Flange A105 A105 A105 A182F304 A182F316 A182F304L F316L 20-Alloy Eyebolt CS A193B7 A193B7 A193B8 Eyebolt Nut CS A194 2H A194 2H A194 8 Eyebolt Pin A276-410 A2764-10 A276412 A276-304 Stem nut Bronze Bronze*3 Bronze*3 Bronze Handwheel Malleable iron Wheel nut CS CS CS CS + Zn *1- PN≥ Class 600 seal face will be HF *2- PTFE optional *3- Ductile Ni-resist iron optional
Company Contact:
- Posted By: Wenzhou Xinsy Technology Co.,Ltd.
- Phone: +8613506511164
- Address: Rm.3-8110,LOFT8, NO.8 Liming industry zone,Binjiang sub-district, wenzhou , Zhejiang , China
- Email:
- Website: https://www.wzxinsy.com
Published date: August 19, 2019
- Business Description: Wenzhou Xinsy Technology Co., Ltd. is as a lead supplier and exporter of stainless steel valve from wenzhou China.
We pursuit of Safty First,High quality with good price,technology innovation and service to the heart.
Castings direct from own foundary and products processed by digital control machine.
We offer wild range of the valve with API, ANSI, JIS, DIN, GB, BS, KS standard.
The material used is as WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast.
etc.
The Pressure is from CL150 to CL2500, working temperature can be -20 to 400 centigrade, wildly used in oil, gas, chemical, petrochemical pulp, paper, water, waste water, marine.
OEM & ODM are welcome.
