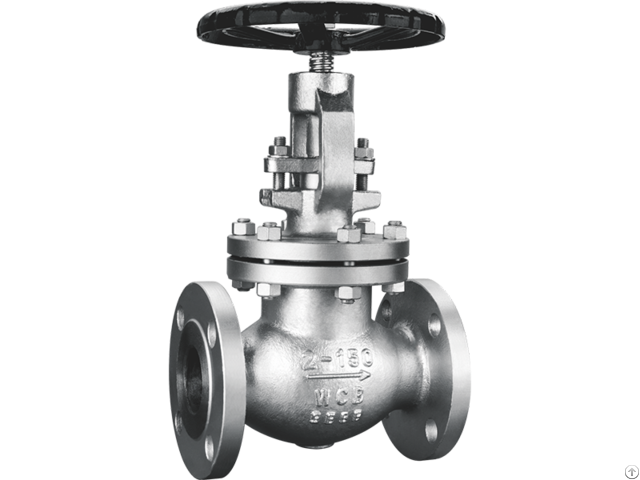

Ansi Cl150flanged Globe Valve - China
price: check with company for price
Application and Specification
1 Design Rating: BS1873, ASME B16.34
2 Face to Face: ASME B16.10
3 Flanged Ends: ASME B16.5
4 Inspection & Testing: API 598
Main Parts and Materials
No.
Part Name Material No.
Part Name Material
1 Body WCB/CF8/CF8M 10 Screw B7/304
2 Disc A105/F304/F316 11 Handwheel KTH330
3 Open Ring 304/ 304/316 12 Nut 2H/304
4 Disc cover 1035/ 304/316 13 Name Plate Al
5 Stem F6a/ 304/316 14 Nut 2H/304
6 Bonnet WCB/CF8/CF8M 15 Screw B7/304
7 Packing Graphite 16 Gasket 304+Graphite/PTFE
8 Gland WCB/CF8 17 Nut 2H/304
9 Stem nut Qt400/Brass 18 Screw B7/304
Company Contact:
- Posted By: Wenzhou Xinsy Technology Co.,Ltd.
- Phone: +8613506511164
- Address: Rm.3-8110,LOFT8, NO.8 Liming industry zone,Binjiang sub-district, wenzhou , Zhejiang , China
- Email:
- Website: https://www.wzxinsy.com
Published date: July 14, 2019
- Business Description: Wenzhou Xinsy Technology Co., Ltd. is as a lead supplier and exporter of stainless steel valve from wenzhou China.
We pursuit of Safty First,High quality with good price,technology innovation and service to the heart.
Castings direct from own foundary and products processed by digital control machine.
We offer wild range of the valve with API, ANSI, JIS, DIN, GB, BS, KS standard.
The material used is as WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast.
etc.
The Pressure is from CL150 to CL2500, working temperature can be -20 to 400 centigrade, wildly used in oil, gas, chemical, petrochemical pulp, paper, water, waste water, marine.
OEM & ODM are welcome.
