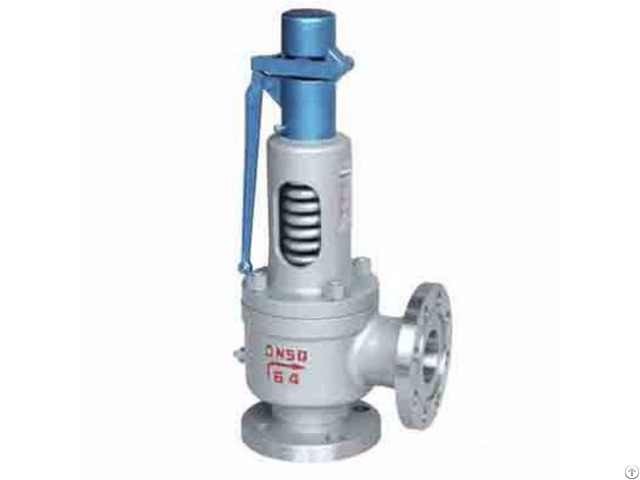

A48h Spring Loaded Full Lift Safety Valve 150 900lb Pn16 Pn100 - China
price: contact company for price
China Spring Loaded Full Lift Safety Valve Manufacturer Shinjo Supplies A48H Spring Loaded Full Lift Safety Valve, 150-900LB, PN16-PN100, ASME, API 526 - Valve Design: ASME, API 526, GB/T 12243-2005
Material: A216-WCB, A216-WCC, A217-WC6, A217-WC9
Pressure Grade: 150Lb, 300Lb, 600Lb, 900Lb, PN16~PN100
Seal Test Pressure: 0.9PS
Discharge Pressure: ≤1.03PS
Back Seat Pressure: ≥0.9PS
Lift Height: ≥(1/4)do FULL LIFT
Coefficient of Discharge: G-0.75
Connection Flange: ASME B16.5, GB/T 9113.1/2-2000
Company Contact:
- Posted By: Shanghai Shinjo Valve Co., Ltd.
- Phone: 86-21 5620 6641
- Address: No 150, Honxing Road, Shanghai, China., Shanghai , Shanghai , China
- Email:
- Website: http://www.shinjovalve.com/
Published date: January 12, 2017
- Business Description: Shanghai Shinjo Valve Manufacturer is specialized in producing various industrial valves: Ball Valves, Check Valves, Gate Valves, Globe Valves, Plug Valves, Butterfly Valves, Safety Valves, Hydraulic Control Valves, Control Valves, Pressure Reducing Valves, Needle Valves, Cast Steel Valves, Forged Steel Valves, Balance Valves, Diaphragm Valves, Blind Valves, Lined Valves Series and types of Pumps.
Products are widely applied in oil gas, chemical, electric power, shipping, mining, water treatment industrial system etc.
