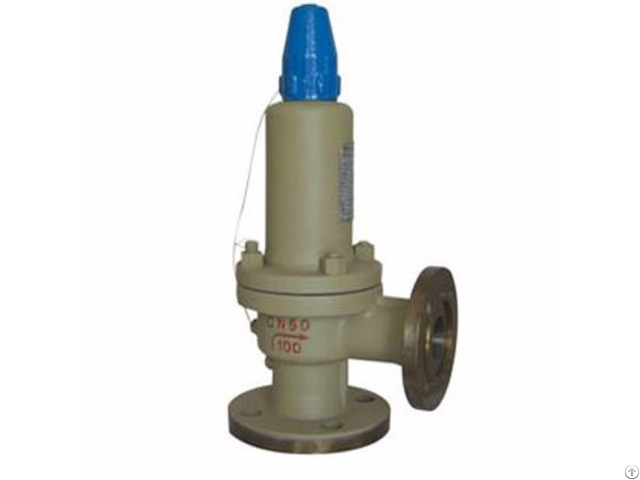

A41h Spring Loaded Safety Valve - China

China Spring Loaded Safety Valve Manufacturer Shinjo Supplies A41H Spring Loaded Safety Valve, 150-900LB, PN16-PN320, ASME, API 526, GB/T 12243-2005 - Valve Design: ASME, API 526, GB/T 12243-2005

Material: A216-WCB, A216-WCC, A217-WC6, CF3, CF3M, CF8, CF8M, Brass

Pressure Grade: 150Lb, 300Lb, 600Lb, 900Lb, PN16~PN320

Seal Test Pressure: 0.9PS

Discharge Pressure: ≤1.1PS

Back Seat Pressure: ≥0.85PS

Lift Height: ≥(1/20)do LOW LIFT

Coefficient of Discharge: G-0.15

Connection Flange: JB/T 2769-1992Codes and Standard:

United States:

ASME (American Society of Mechanical Engineers) Boiler & Pressure Vessel Code, Section I.

ASME (American Society of Mechanical Engineers) Boiler & Pressure Vessel Code, Section VIII, Division 1.

API (American Petroleum Institute) Recommended Practice 520 and API Standard 526, API Standard 2000 (low pressure - Storage tank).

European Union:

European standard steam boiler safety valve ISO 4126 (harmonized with European Union directives).

EN 764-7 (former CEN standard, harmonized with European Union directives, replaced with EN ISO 4126-1).

AD Merkblatt (German).

PED 97/23/EC (Pressure Equipment Directive - European Union).

China:

JB/T308-2004 .

GB/T12241-2005 .

GB/T12243-2005 .
