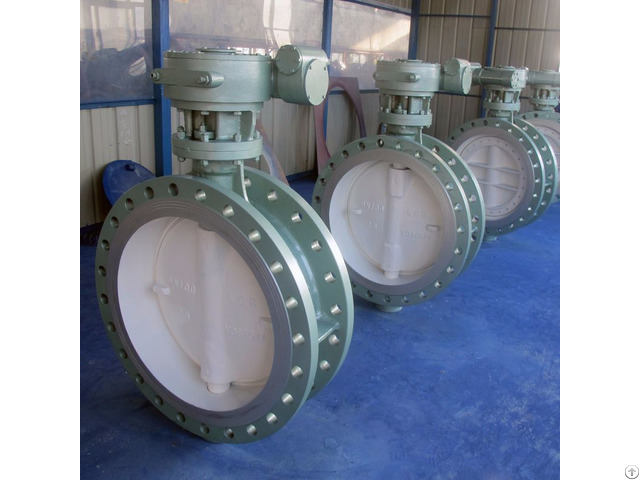

Triple Offset Butterfly Valves - China
price: 135.00 Dollar US$
Product name, triple offset metal seated butterfly valves size range: 50mm -4000mm, 2inch up to 160inch
pressure rated: PN2.5/PN6/PN10/PN16/PN25/ PN40 / 150LB 300LB /14.5psi up tp 360psi standards accorded with, Design: API609 / AWWA-C504 / BS EN593 / GB/T12238
Face to face: API609 / ASME B16.10 / BS EN558 / GB/T12221
Flange end: ASME B16.42 / ASME B16.5 / BS EN1092-2 / GB/T9113 / GB/T 17241.6
Pressure test: API598 / BS EN12266 / GB/T 13927 Applications, Fresh water / Sea water / Salts water
Steam / Gas / Air
Alkali / acid / oil materials, Body: Cast iron – HT200, HT250 Ductile iron – QT450-10, QT500-7 / GGG40, GGG50 Carbon steel – WCB, WCC, LCB Stainless steel – CF3, CF8, CF3M, CF8M
Disc: QT450-10, QT500-7, WCB, WCC, LCB, CF8, CF3, CF8M, CF3M
Stem: SS410, SS420, SS304, SS316
Sealing ring: NBR, EPDM, PTFE, RPTFE, VITON outstanding features, 1 - Bidirectional sealing.
2 - Zero leakage
3 - Good flow regulating function and sealing performance.
4 - Different seat designs satisfy various service conditions
5 - The disc can move away from the seat fast and prolong the valve life.
6 - Simple in structure, and convenient in mounting, dismounting and change.
Company Contact:
- Posted By: Henan Yuda Valve Manufacturing CO.,LTD
- Phone: +86-375 7232888
- Address: Yuda Industrial Park, Ruzhou , Henan , China
- Email:
- Website: https://www.hnydvalve.com
Published date: February 25, 2017
- Business Description: Yuda Valve Group, as a leading professional butterfly valves, producing double eccentric resilient seated butterfly valves, triple offset metal seated butterfly valves, also a trading company supply other indutrial valves in China with over 20 years in this line.
our outstanding features, 1 - valve castings produced by our own foundry factory,
2 - six workshops with automatic production line
3 - R&D team and complete inspection equipment, many patents gained
4 - 460 employees
5 - huge valve castings in stock , you will never be short of goods
6 - supplying OEM service
professional manufacturer supplying high quality products, hoping we can have chance to support your company!
