Center Line Butterfly Valve - China

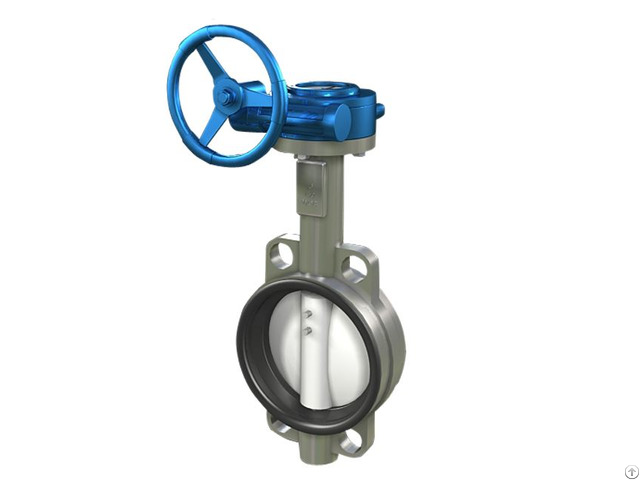

This center line butterfly valve is consisted of valve body, valve disc and soft sealed valve seat.

Capable of cutting off the medium, the center-line butterfly valve is generally used for the medium like water, oil, gas and other corrosive product with the temperature less than 80℃.

Features

1 - The valve body of the wafer butterfly valve is symmetric by the center line.

So the installation of the soft sealing butterfly valve is easy and convenient.

2 - Manufactured with PTFE, NBR or other materials, the valve seat will not fall off.

Besides convenient replacement, the manual wafer rubber lined butterfly valve has good leak-proof and strength resistance performance.

3 - With integrated structure, the valve stem of the rubber lined butterfly valve has higher strength.

The elaborate processing can prevent the medium from leaking effectively.

4 - The precise valve disc is polished .

Well matched with the valve seat, the valve disc has outstanding sealing performance.

Technical specifications

Size：2”~60” DN50~2000

Pressure：Class 150 PN1.6~PN2.5 Body material： QT450, WCB(A105), LCB, CF8(304), CF8M(316), CF3(304L), CF3M(316L), etc.

Sealing material ：Rubber, PTFE, etc.

Connection method ：Flange, wafer, welding

Driving method：Hand wheel, Electric actuator, Pneumatic actuator

Design standard: ASME B16.34, BS1873 - ASME B16.10, ASME B16.5

Applications:

Water plant, power plant, chemical plant
