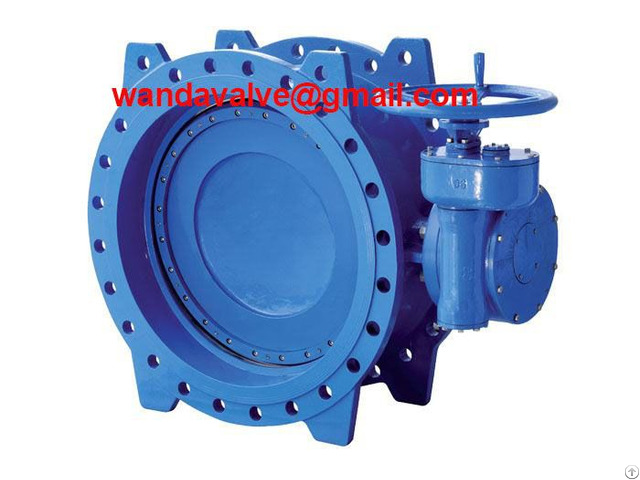

Cast Iron Double Eccentric Butterfly Valve - China
price: check with company for price
Specification Details Design Std: EN 1074, EN593
Size: DN100--DN2000
Pressure Rating: PN10, 16, 25 or 40 bar according to construction
Seat: stainless steel, EPDM, NBR
Face to Face: EN 558-1 Series 14, DIN3202 F4
Flange Drilling: ANSI / EN1092-2 / AS4087 / AS2129
Replaceable seat, no wrenkling possibility
Working temperature: –15°C / 80°C
Valve Description Double-eccentric butterfly valves are industrial valves, which are designed to fully open or close the passage of the working medium flowing through a pipeline.
They can also be used for flow-control purposes.
However, a 100% tightness of the valve cannot be guaranteed in a long-term use for control purposes
Company Contact:
- Posted By: Zhejiang Wanda Valve Co Limited
- Phone: +8657181370072
- Address: Gaoxin Avenue, Yongqiang Rd. Longwan Area, Wenzhou, China, Wenzhou , Zhejiang , China
- Email:
Published date: December 1, 2017
- Business Description: Wandavalve is one of the most important manufacturers of water valves in the China with experience dating back over 20 years.
Its success story began in 1994 when Steven Li founded a small workshop in Wenzhou, China.
Presently, the scope of Wanda Valve supply products including following(but not limited below): -
Wafer butterfly valve, Lug Butterfly valve, Flanged Butterfly valve
Resilient seat gate valve, Metal seat gate valve
Cast Iron Ball Valve, Cast Steel Ball valve, Stainless Steel Ball Valve
Cast Iron Globe Valve, Cast Steel Globe valve, Stainless Steel Globe Valve
Cast Iron Check Valve, Cast Steel Check valve, Stainless Steel Check Valve
DIN Y Strainer, ANSI Y Strainer
Our products are widely used in the irrigation, potable water and waste water systems and infrastructure equipment fields, oil gas, chemicpetrol etc.
