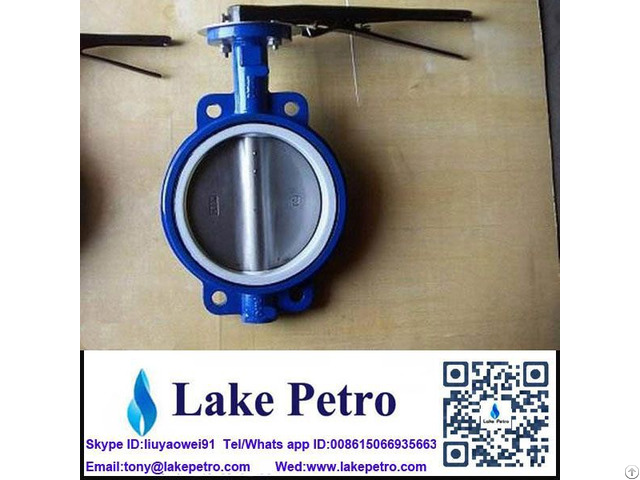

Butterfly Valve Wafer Type 16bar The Best Quality - China

best quality Product Description Sumary: 1 - Compact structure and beautiful appearance, light weight, easy to install body.

2 - Corrosion resistance, a wide range of applications, and health non-toxic materials.

3 - Wear-resistant, easy disassembly and maintenance easy.

4 - The pneumatic actuator design is simple and compact, double-acting, single acting (spring return) type, long life, low coefficient of friction, and is extremely easy to install accessory.

Main Technical Parameter: Valve Body Nominal Diameter (mm) DN50~DN200 Nominal Pressure (MPa) 1.0Mpa Connection Type Wafer Structure Vertical Plate Applicable Temperature -20~+60℃ Applicable Media Water, air, oil, corrosive chemical liquid Pneumatic Actuator Operating media Dry or lubricated air or inert gas, non-corrosive Air Pressure 2.5 Bar~8 Bar, generally used 5Bar Operating temperature -20℃~80℃ Travel angle 0°~90°±4°adjustment Optional accessories Solenoid valves, positioners, air source triple pieces, hand-operated Butterfly valve Wafer type Manual Product Description 1) Standards: 1 Design Standard conform to: MSS SP-67M API609, EN593

2 Connection flange conform to: DIN PN10/16/25 ANSI B16.1, BS4504, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS10 Table E

3 Top flange conform to: ISO5211

4 Face to face conform to: API609, ISO5752 series 20, BS5155

5 Test standard conform to: API 598 2) Design Characters: 1 Rubber backed seat with stable valve torque.

2 Grooved sleeve design to achieve stable pisitioning

3 Simple construction, small in size, light in weight.

Easy disasembling, installation and maintenance.

4 Minimized operating torque.

Lewer, gear, pheumatic and electric actuators can be chosen.

5 Special design, high flow rate and low flow resistance.

6 Suitable madium: water, sewage, sea water, air, steam, foof, medicament, oils, acids, alkais, salts etc.

No leakage under the rated pressure.

3) Performance: Nominal Diameter: Non-backed: DN50-DN300

backed: DN50-DN300, DN350-DN1200

Nominal Pressure PN(mpa): 1.0, 1.6, 2.0, 2.5

Testing pressure (water) Ps(MPa) Body seat: 1.5 times rated pressure

Seat test: 1.1 times rated pressure
