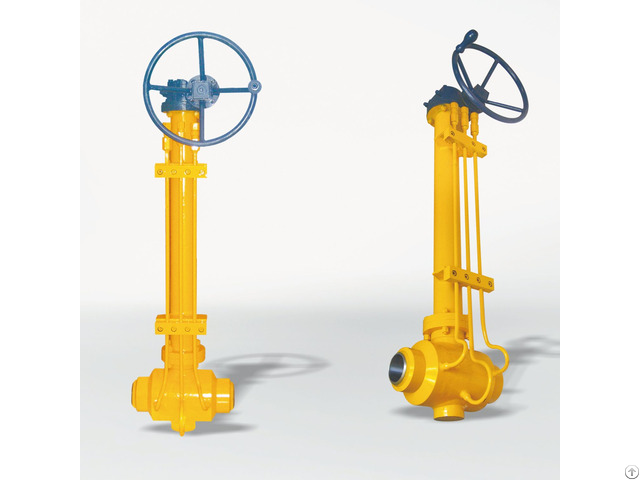

Dn50 Dn400 Worm Gear Fixed Gas Ball Valve - China

KAQ367F fixed gas ball valve is a new generation of high-performance ball valve, it is widely used in long-distance pipelines and general industrial pipelines.

Compared with the floating ball valve, the working force of the medium pressure in the pipeline before the valve on the ball is transmitted to the upper and lower bearings, the ball will not move relative position, and the valve seal ring should have sufficient pretension by the spring force.

To ensure the sealing of the valve, the sealing surfaces at both ends of the product are evenly stressed, the operating torque is low, the sealing performance is safe and reliable, and the service life is long.

The item is particularly suitable for long-distance pipelines and urban gas supply projects.

Features of Product Structure

Easy to operate: The ball is supported by the upper and lower bearings, reducing friction and eliminating the excessive torque caused by the huge sealing load formed by the inlet pressure pushing the ball and the sealing seat.

Even under the highest operating pressure can achieve smaller torque.

Good sealing performance: a spring is provided at the tail end of the metal valve seat to ensure sufficient pretension.

When the sealing surface wears out during use, the valve continues to ensure good sealing performance under the action of the spring.

Drainage pipeline: Sewage holes can be set at the top and the bottom of the valve body, which can exam if the valve is leakage or not.

Company Contact:

• Posted By: Wenzhou KMO Fluid Equipment Co.,Ltd

• Phone: +8618057776809

• Address: Yongjia Dong'ou Fort Street, Industrial Zone, Wenzhou , Zhejiang , China

• Email:

• Website: https://www.gasballvalve.com/products

• Business Description: WENZHOU KMO FLUID EQUIPMENT Co., LTD. is a professional R&D, production and sales enterprise.

  It is located in Oubei Town, Yongjia County, Wenzhou City, which is the "Hometown of Pumps and Valves in China", it was established in 2015 with a registered capital of 11 million yuan.

  , the products are selling well all over the country.

  The main products are gas Y strainer, fuel gas cartridge filter, automatic backwash filter, fuel gas anti-static ball valve, fuel gas fire anti-static ball valve, pneumatic ball valve, fuel gas emergency solenoid valve, etc.

  The nominal diameter of the ball valve is 6mm～800mm (1/4″-32″), the nominal pressure is 0.1Mpa～32Mpa (150Lb-2500Lb), and the design temperature is -196℃～540℃.

  The main materials are WCB, aluminum alloy, 304, 304L, 316, 316L, 20#, 2205, fluorine-lined rubber and other products.

  Product connection standards can be based on user requirements, including GB, ANSI, DIN, JIS, etc.
