refining furnace Graphite Electrode PRODUCT DESCRIPTION

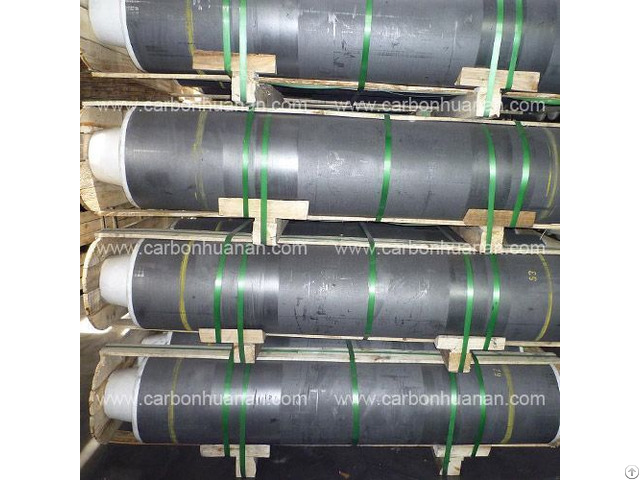

Name: HP Graphite Electrode

Model: HP 400mm

China graphite electrodes factory: Shijiazhuang huanan carbon factory Introduction

The graphite electrode is mainly made of petroleum coke and needle coke, and the coal asphalt is used as a binder.

It is made by calcination, distributing, kneading, forming, roasting, graphitization and machining.

It's a conductor which release electric energy in the form of electric arc in the electric arc furnace heats and melts the material.

the charge can be divided into a regular power graphite electrode, a high power graphite electrode and an ultra high power graphite electrode according to its quality index.

The main raw material for graphite electrode production is petroleum coke.

The regular power graphite electrodes can be added with a small amount of pitch coke.

The sulfur content of petroleum coke and pitch coke cannot exceed 0.5%.

Needle coke is also required for the production of high power or ultra high power graphite electrodes.

Advantage

The advantage of graphite electrode is that it is easy to process, the electricity discharge processing rate is high, and the graphite loss is small.

Production characteristics

The production period is long.

The production period of regular power graphite electrodes is about 45 days, the production period of ultra high power graphite electrodes is more than 70 days, and the production period of graphite electrode joints (nipples) requiring multiple impregnation is more longer.

Application

Mainly used in electric arc steelmaking furnaces, refining furnaces, industrial silicon furnaces, yellow phosphorus furnaces, electric resistance furnaces, etc., as conductive usage.

The graphite electrode blank is also used to process a variety of shaped graphite products such as enamel, mold, boat and heating element.

Technical Properties of Graphite Electrodes & Nipples

Item Unit HD Graphite Electrode Specific Resistance ≤ Electrodes (E) μΩ.

m 8.0 Nipple (N) 7.5

Flexural Strength≥ Electrodes (E) MPa 10 Nipple (N) 13.0

Elastic Modulus ≤ Electrodes (E) GPa 12.0 Nipple (N) 14.0

Bulk Density ≥ Electrodes (E) ɡ/㎝³ 1.58 Nipple (N) 1.68

100-600(C.T.E.

) ≤ Electrodes (E) 10-6/℃ 2.7 Nipple (N) 2.5

Ash Content ≤ Electrodes (E) % 0.3 Nipple (N) 0.3

Real Density ≥ Electrodes (E) ɡ/㎝³ 2.18 Nipple (N) 2.2

Company Contact:

• Posted By: Shijiazhuang huanan carbon factory

• Phone: 18633077361

• Address: Jicun,yuanshi country, shijiazhuang , hebei , China

• Email:

• Business Description: The Huanan Carbon Factory in Shijiazhuang City is a professional manufacturer of carbon products in the metallurgical industry.

  It has a history of 30 years.

  Advanced production technology and strong technical force.

  Complete production equipment, quality testing, and complete inspection facilities.

  The product quality complies with YB/T4088-2000, YB/T4089-2000 and YB/T142-1998 standards.

  And equivalently adopts IEC60239 "Nominal Size of Graphite Electrode for Electric Arc Furnace".

  The main products are: RP graphite electrode, impregnated graphite electrode, high power graphite electrode, graphite crucible, smelting furnace shaped carbon block, electrode paste, recarburizer, and non-standard specifications of shaped carbon products.

  Graphite electrode series products are made of high quality carbon materials.

  Low ash content, good electrical and thermal conductivity.

  Anti-oxidation, thermal shock resistance, impact resistance, high mechanical strength under high temperature conditions.

  It can resist the erosion of molten steel.

  Graphite electrodes have low resistivity and excellent electrical conductivity, and have been widely used in electric arc furnaces, electric resistance furnaces, and submerged arc furnaces as conductive materials.

  The products are sold well in domestic, and are exported to more than 20 countries and regions such as Europe, Middle East, Southeast Asia, America, Africa, etc., and are favored by users.
