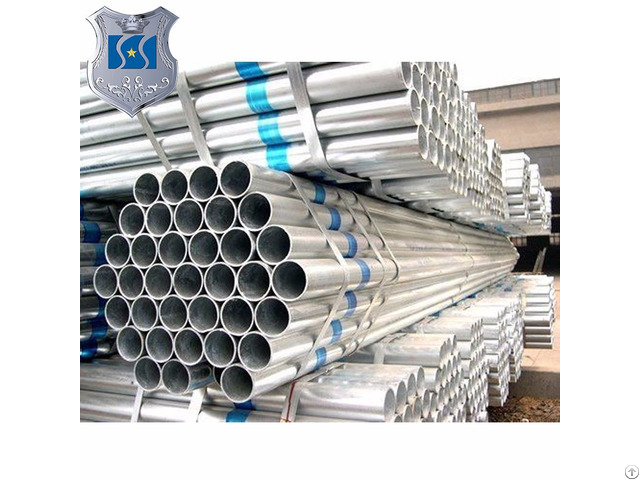

Galvanized Steel Pipe Galvanised Tube - China

Galvanized steel pipe(galvanized pipe), Galvanised steel pipe(galvanised pipe)

Galvanized steel pipes are made of steel that has been covered with a layer of zinc metal.

During the galvanizing process, we immerse the steel in a molten zinc bath, ensuring a tough, uniform barrier coating.

Application:

1 - Building and structural material

2 - Mechanical and general engineering purposes

3 - Manufacturing of Bus Body, Railway Boogies

4 - In Telephone department as Conduit Pipes

Types: Galvanzied welded steel pipe, galvanzied seamless steel pipe

Materials: Carbon steel

Connection type: threaded

Size range: 1/8"-36"

Schedule: sch40, sch80, sch120, sch160, XH, XXH Length of the galvanized tubes

in diameter 4 - 16 mm 6000 + 100 mm

in diameter 18 - 42 mm 6000 + 50 mm Tolerances of the zinc coated tubes

- tolerances of the outside diameter:

diameter between 4 - 30 mm ±0, 08 mm

diameter between 35 - 38 mm ±0, 15 mm

diameter up to 42 mm ±0, 20 mm

- tolerances of the inside diameter are according to EN 10305-4 - tolerance of the wall thickness ± 10% The Steel grades for the zinc coated tubes

E 235+N and E 355+N Surface condition of the galvanized tubes

First layer – electrolitically leached zinc (Zn) – acts as anode and in a corrosive environment it corrodes first and the base metal is cathodically protected against corrosion.

The zinc layer thickness may be in the range of 5 to 30 micrometers (µm).
