Hydraulic Honed Pipe - China

E355 Precision Honed Tube Srb /Skived and Burnished Tube Pneumatic Cylinder Tube Hydraulic Honed Pipe

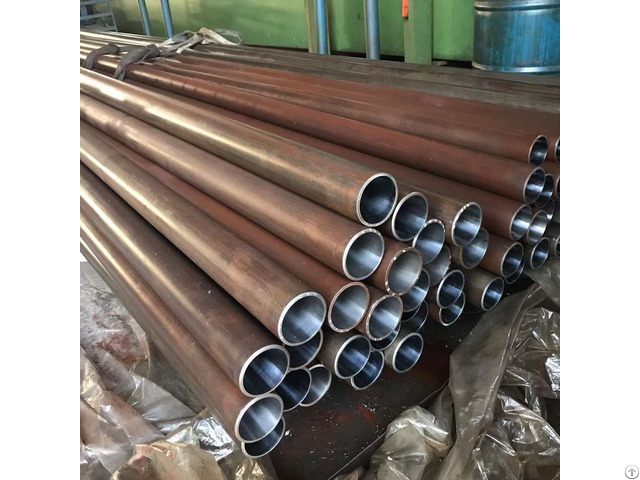

1 - Description: Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.

2 - Commodity: Cold drawn seamless honed tube for hydraulic cylinder

3 - Size range: 40mm*30mm-580mm*500mm

4 - Available steel grade: EN 10305-1 E195, E235, E355, C35E, C45E, E410, E470, S355J2, S355J2G3, 25CrMo4, 34CrMo4, 42CrMo4

DIN 2391-2 ST37, ST44, ST52

ASTM A519 1010, 1020, 1026, 1045, 1518, 1524, 1541, 4130, 4140, 4145, 4340, 8620

JIS STKM 13A, STKM 13B, STKM 13C

GB Q345B, 25Mn, 16Mn, Q345D, Q345E, 20#, 45#, 20CrMo, 25CrMo, 30CrMo, 35CrMo, 42CrMo

5 - Manufacture method: Cold rolled, hydraulic cold drawn, hot rolled+deep hole boring

6 - Delivery condition: BK BKW BKS GBK NBK Q+T

+C +LC +SR +A +N Cold rolled Cold drawn Stress relieved Annealed Normalized Quenched+Tempered

7 - Bore treatment: Honing, skiving&roller burnishing

8 - Bore roughness control: Ra0.25um max or Ra0, 35um max for honed tubes, Ra0.25um max for skived&roller burnished tubes.

9 - End finish: Plain ends with square cuts, free of burrs for honed tubes.

Little bevelled ends for skived&roller burnished tubes.

10 - Standard export packing: In bundles tied with steel strips.

Int&ext oil coating.

End plastic caps.

External packing by PVC bags and knit bags.

11 - Customized packing and marking can be provided upon request.

12 - H8 tolerance: ID range Tolerance ID range Tolerance

18< d ≤30 +0/+0.033 180< d ≤250 +0/+0.072

30< d ≤50 +0/+0.039 250< d ≤300 +0/+0.081

50< d ≤80 +0/+0.046 300< d ≤315 +0/+0.081

80< d ≤120 +0/+0.054 315< d ≤400 +0/+0.089

120< d ≤180 +0/+0.063 400< d ≤500 +0/+0.097

13 - Difference between honed tube and skived&roller burnished tube: In hydraulic cylinder industry, there are 2 solutions for bore treatment: Honing, and skiving&roller burnishing.

Honing or skiving&roller burnishing leads to different internal surface image, but both ensure good roughness.

Company Contact:

• Posted By: Jiangsu YingNaiSi Machinery Manufacturing Co., Ltd.

• Phone: 18118029715

• Address: wujin , changzhou , jiangsu , China

• Email:

• Website: http://www.ynstube.com

• Business Description: About us

  Jiangsu YingNaiSi Machine Manufacturing Co., Ltd. (Jiangsu YingNaiSi) was founded in 2005,with covering an area of more than 23000 Square meters,and more than 100 employees.

  Cold drawn and cold rolled precision seamless steel pipes and Hydraulic cylinder are our main products。Our annual output has reached over 15000tons.

  Our products are extensively applied in hydraulic pressure of engineering machinery, pneumatic linear actuators, petroleum oil-well pump cylinders, micro-motor shell, lubricating oil ball sweep systems, aluminum foil mandrel, high pressure gas cylinders, automotive shaft, textile, printing and dyeing, glass packaging, transmission roller and other fields.

  We have obtained ISO 9001 Quality Certificate and ISO 14000 with annual export of more than 80 million tons.

  Our products are exported to Southeast Asia, Europe, Middle East and other countries with a good reputation.
