Wholesale Fast Installation And Replacement Alumina Ceramic Embedded Rubber Liner - China

Rubber wear liner size

300*300*8mm

Ceramic mesterial

92% alumina With or without bolts

Without

Ceramic size

17.5*17.5*4mm

Seam tolerance

3±1mm

Rubber wear liner size weight

1.8kg/piece

Sample time

1-5 days Product description:

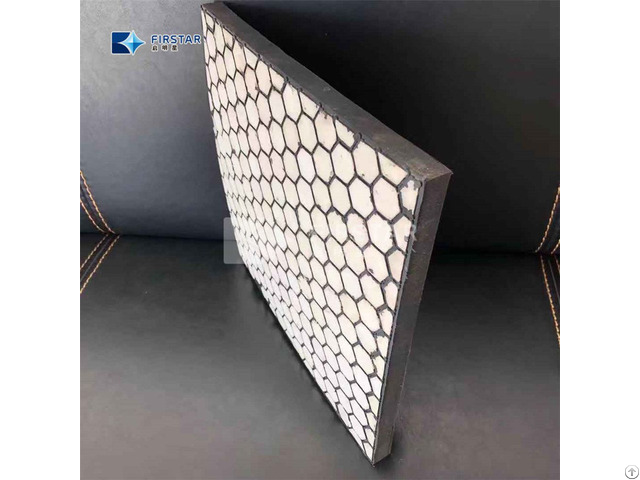

Also named wear cermaic parts, wear rubber ceramic plate, wear resistant ceramic pads.

Ceramic rubber composite pads&plate is use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of equipment with the adhesice paste.

As customers' requirment, it also can be vulcanized together with steel plate, with bolts or not.

Features:

It combines wear-resistance of ceramic of ceramic and impact-resistance of rubber, apply to conveying systems equipment work under normal temperture, and can bear some impact.

Impact-resistant and wear-resistant ceramic rubber composite lining board (three-in-one lining board) is mainly used in the thermal power industry (falling coal pipe lining board), the steel industry (blast furnace hopper, cylindrical mixer), the cement building materials industry (clinker clinker) Chute), smelting industry (hopper), machinery industry (hopper), coal industry (transportation station chute), mining industry (initial break, medium and fine breakage, transfer chute hopper), chemical industry (chute), organic silicon industry (level two) Heavy-duty cyclone dust collector), coal chemical industry (falling coal pipe), port terminal (ship unloader hopper), commercial industry (mixer liner), automobile manufacturing and other heavy-wearing industries.

Company Contact:

• Posted By: ZIBO QIMINGXING NEW MATERIAL INCORPORATED CO.,LTD.

• Phone: 86-533-3591856

• Address: No. 6692,New and Hi-tech Development Area,, Zibo , Shandong , China

• Email:

• Website: http://www.qmxwearceramics.com/

• Business Description: Our main products cover

  1) 92/T95/ZTA wear-resistant ceramic liner 2)ceramic grinding ball media(Rolled type and Pressed type) 3)ceramic rubber plate,ceramic tube with steel pipeline 4)silicon carbide cyclone/tile block 5)polyurethane structural parts

  6) wearing compound ceramic bead filled epoxy
