Steel Cord Heat Resistant Conveyor Belt - China

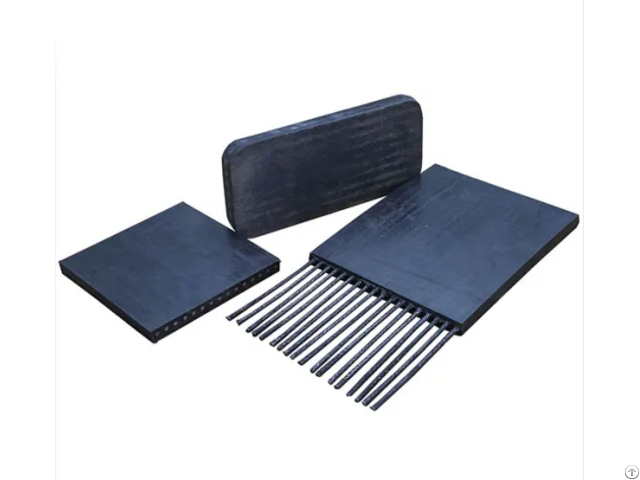

Steel Cord Heat Resistant Conveyor Belt

High strength conveyor belt is suitable for the working conditions which are long distance, high speed and heavy load transportation.

To convey the powdery, granular materials and blocked materials with no corrosivity, such as coals, sands and stones.

It also suitable for heavy load and high speed transportation of materials, which are widely used in coalmines, mines, chemical industry, metallurgy.

construction, ports, and some other area.

The rubber covers of high strength conveyor belt adopts high strength sizing, and the skeleton is adhered by multi plies of quality nylons or poly curtains.

specification

1 - Cover Grades

Grades of cover Tensile strength/Mpa Elongation at break% Abrasion/mm³

L 15 350 200

D 18 400 100

H 24 450 120

H1 25 450 90

H2 28 450 90

H3 30 450 90

H4 35 450 90

2 - Full thickness tensile performance

The vertical full thickness strength of belt is not smaller than the specified type in the form below.

The minimum full thickness tensile strength (N/mm) = specified belt type

specified belt type 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150 3 - The full thickness vertical reference strength elongation of belt is no more than 4% 4 - The adherence strength between plies

item between the fabric plies between cover and belt cord cover thickness between0.8-1.5mm cover thickness>1.5mm

Average of sample N/mm 8.0 5.0 6.0

Minium of sample N/mm 7.0 4.5 5.5
