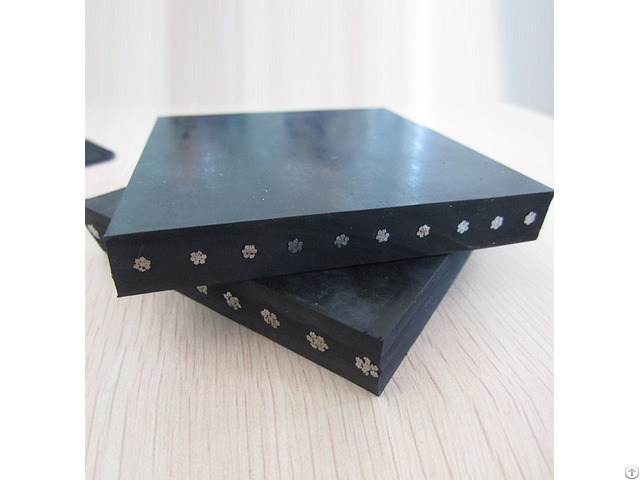

Fire Resistant Steel Cord Conveyor Belt For General Use - China

Fire Resistant Steel Cord Belt, Coal Mine Steel Cord conveyor Belt, Anti-Tear Steel Cord conveyor Belt Manufacturer

1 - Applications

Fire resistant steel cord conveyor belt is suitable for general uses, such as coal washing plants on the ground, power plants, and non-coal mines under ground.

It should meet requirements of electrical and fire safety properties.

2 - Physical Properties of Rubber Cover

Grade Tensile Strength/Mpa ≥ Breaking Elongation/% ≥ Abrasion Loss/mm3 ≤

H 20 400 200

D 18 400 120

L 15 350 200

Note: Grade H-used for highly-sharp working conditions.

Grade D-used for highly-abrasive working conditions.

Grade L-used for general working conditions.

After-aging properties of rubber cover(70℃×7d):

Change rate of tensile strength & breaking elongation: -25%~+25%.

3 - Adhesion

a.

Adhesion between rubber cover and belt core: ≥12N/mm.

b.

Adhesion of steel core (N/mm)

Belt type 630 800 1000 1250 1600 2000 2500 2800 3150 3500 4000 4500 5000 5400

Before- aging, ≥ 60 70 80 95 105 105 130 135 140 145 150 165 175 180

After- aging, ≥ 55 65 75 90 95 95 120 125 130 140 145 160 170 175 4 - Specification

Specification of steel cord conveyor belt

Belt type ST630 ST800 ST1000 ST1250 ST1600 ST2000 ST2500 ST2800 ST3150 ST3500 ST4000 ST4500 ST5000 ST5400

Min.

tensile strength (N/mm) 630 800 1000 1250 1600 2000 2500 2800 3150 3500 4000 4500 5000 5400

Max.

diameter of steel cord (mm) 3.0 3.5 4.0 4.5 5.0 6.0 7.2 7.6 8.1 8.6 8.9 9.7 10.9 11.3

Min.

breaking force of steel cord (kN) 6.93 8.8 13.2 16.5 21.12 26.4 41.25 45.9 51.98 57.70 66.00 79.20 93.50 101.0

Steel cord pitch (mm) (±1.5) 10 10 12 12 12 12 15 15 15 15 15 16 17 17

Top cover thickness (mm) 5 5 6 6 6 8 8 8 8 8 8 8 8.5 9

Bottom cover thickness (mm) 5 5 6 6 6 6 6 6 8 8 8 8 8.5 9

Belt width Number of steel cord

800 75 75 63 63 63 63 50 50 50 50 1000 95 95 79 79 79 79 64 64 64 64 64 59 55 55

1200 113 113 94 94 94 94 76 76 76 77 77 71 66 66

1400 133 133 111 111 111 111 89 89 89 90 90 84 78 78

1600 151 151 126 126 126 126 101 101 101 104 104 96 90 90

1800 171 143 143 143 143 114 114 114 117 117 109 102 102

2000 159 159 159 159 128 128 128 130 130 121 113 113

2200 176 176 176 176 141 141 141 144 144 134 125 125 5 - Safety property

Item Fire resistant grade K2 K3

Duration of flame Total value of flame duration of 6 samples with covers, not more than 45s, any single value not more than 15s.

Average value of flame duration of 3 samples with covers, not more than 60s.

Static conductive properties ≤ 3×108Ω

Reappearance of flame not allowed in any sample Huayue started business by producing rubber belts since 1982 - It has been one of Solid Woven Conveyor Belts manufacturers and is the major factory of fabric conveyor belt and Steel Cord Conveyor Belt in China.

Company Contact:

• Posted By: Baoding Huayue Rubber Belts Co., Ltd.

• Phone: +863123912064

• Address: Boye County Economic Development Zone, baoding , Hebei , China

• Email:

• Business Description: Baoding Huayue Rubber Belts Co., Ltd started business by producing rubber belts since 1982 - It has been one of top 10 conveyor belts manufacturers and is the major factory of fabric conveyor belt in China.

  It covers an area of about 180666㎡ including building area 26666㎡.

  There are more than 300 staffs in our company.

  Registered capital is 200 million CNY, and annual production capacity is 30 million square meters.

  It has a complete R&D center and Testing Center.

  Our main products include steel cord conveyor belt, EP, Nylon conveyor belt, PVC PVG solid woven fire resistant conveyor belt.

  Anti-tear and fire resistant steel cord conveyor belt, more than 200 subclass types and sizes.
