Clamp Flexible Rubber Joint - China

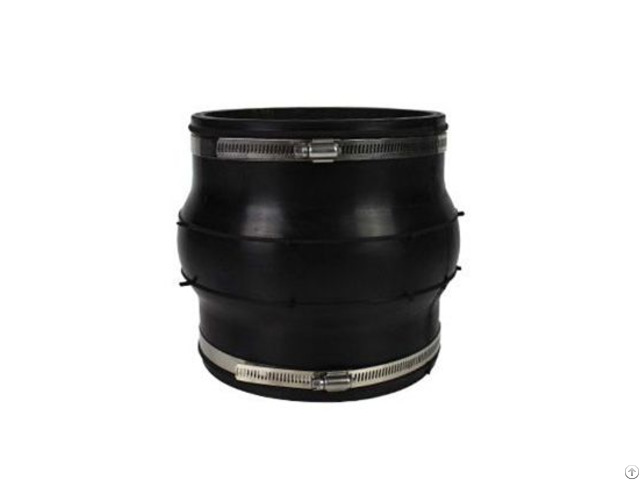

Clamp Flexible Rubber Joint

Clamped Rubber Joint

Rubber Joint, oil resistance Flexible Rubber Joint

1 - Clamp Flexible Rubber Joint can greatly reduce pipeline system vibration and noise, can solve the problem of joint displacement axial expansion, etc.

2 - According to different materials, flexible rubber joint can be made into many kinds: acid resistance, alkali resistance, corrosive resistance, oil resistance, heat resistance, adapt to many mediums and different environment.

3 - Material is polar rubber, good sealing, light weight, easy installation, long service life, avoid contacting with sharp metal device.

4 - If use overhead, can match with elastic support, when installation, bolt with diagonal method to tighten up.

5 - If pipeline pressure is high, use bolt connect the flange both ends.

6 - Flange standard: ANSI, JIS, BS, DIN, GB, ect

Item No.

Parts Name Parts Material

1 Hoop Q235 304 316L

2 Outler layer glue IIR, CR, EPDM, NR, NBR

3 Skeleton layer polyester cord

4 Inner layer glue IIR, CR, EPDM, NR, NBR

MAIN DATA

Nominal Diameter(DN) Length L Axial Elongation Axial Compression The radial displacement Deflexion angle

mm inch mm 50 2 180 7 10 10 15º

65 2½ 180 7 13 11 15º

80 3 180 8 15 12 15º

100 4 180 10 19 13 15º

125 5 180 12 19 13 15º

150 6 180 12 20 14 15º

200 8 200 16 25 22 15º

250 10 200 16 25 22 15º

300 12 200 16 25 22 15º

350 14 200 16 25 22 15º

400 16 200 16 25 22 15º

450 18 200 16 25 22 15º

500 20 200 16 25 22 15º

600 24 200 16 25 22 15º

700 28 200 16 25 22 15º

800 32 200 16 25 22 15º

900 36 200 16 25 22 15º

1000 40 200 18 25 22 15º

1200 48 200 18 25 24 15º

1400 56 200 20 26 24 15º

1600 64 200 25 26 26 15º

1800 72 200 20 26 26 15º

2000 80 200 20 26 26 15º
