Inflatable Rubber Dam Supplier - China

Material: EPDM

Service 1: Designing

Service 2: Maintenance & Fixing

Transport Package: in Roll

Specification: Height: 0.5-8m, Length: 1-1000m What are Rubber Dams?

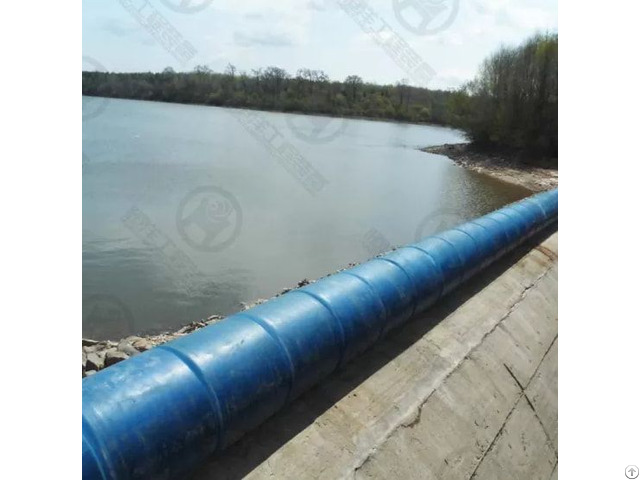

Rubber dams are hydrostatic structures provided with a bladder of textile-reinforced rubber.

It is screwed to the dam structure which creates a tight inner space.

The dam may be water-filled or air-filled.

It creates a balance between the internal pressure of the dam and the water load on the bladder.

The inflatable rubber dam has numerous advantages over other types of water control gate, such as:

•Simple and inexpensive operating system

•Can be installed on almost any channel cross-section shape

•Relatively low capital cost

•Perfect sealing; no leakage

•Virtually maintenance free; no moving parts, no painting

•A long span up to 100m; multiple spans of several hundred meters

•Easily designed to accept loading in both directions

•Light structure

•Clean operation; no hydraulic oil required

•Can always be "opened" (deflated); no possibility of jamming How does it work?

It works in the following order

1 - The pumps and valves are controlled from a power house.

2 - The appliances required for water-filled systems are located in underground shafts and for air-filled systems in an over ground power house.

3 - By varying the filling volume and adjusting the height of the bladder, the retention and discharge sections are adjusted as per requirements.

4 - Using the respective control system, the retention set point is set and adhered to reliably.

5 - The duration of Inflating and/or deflating is also adjusted as per requirements.

6 - The filling medium is supplied to the rubber dam by pipes connected with the control system.

7 - As soon as the rising water level in the retention zone exceeds the retention set point, the bladder is gradually deflated until complete depletion, thus clearing the full dam opening.

8 - As the water level decreases the bladder is inflated.

In this way the upstream water level is kept constant at the specified retention set point.

HengYang Rubber - Air Filling Rubber Dam Manufacturer

When it comes to water conservancy engineering problems, how to choose a flood control solution that can be deployed quickly and adapt to complex terrain has become a difficult problem faced by many buyers.

Traditional flood control facilities not only have a long construction period and high cost, but also have difficulty in responding quickly in emergency situations.

Environmentally friendly, durable, and flexibly customizable flood control products are the key to many engineering projects.

As a leading air filling rubber dam manufacturer, HengYang Rubber's inflatable flood dam can effectively solve these challenges and ensure the safety of your project.

Company Contact:

• Posted By: Hebei Hengyang Engineering Equipment Co., Ltd.

• Phone: 0318-2662221

• Address: Jizhou Industrial Zone, Hengshui , Hebei , China

• Email:

• Website: https://www.hengyangrubber.com/

• Business Description: HengYang Rubber (HY RUBBER), located in Jizhou Industrial Zone, Hengshui City, Hebei Province, P.R. China, is one of the leading manufacturers of inflatable rubber dams, hydraulic elevator dams, and shield type steel dams with rubber bladders.

  What We Do

  Based on decades of rubber experience, HY Rubber is promoting our inflatable rubber dams, hydraulic steel dams and shield type dams.

  The services we can offer: designing, costing, making, installation, civil works consultation.

  One-stop service is available!

  Certifications

  We have been accredited to ISO9001 & ISO14001, Quality Management System and Environment Management System.

  In years working experience, we have been devoted us to designing and making of rubber dams and steel dams with dozens of invention patents.
