Spiral Welded Pipe Mill - China
price: 100.00 Dollar US$

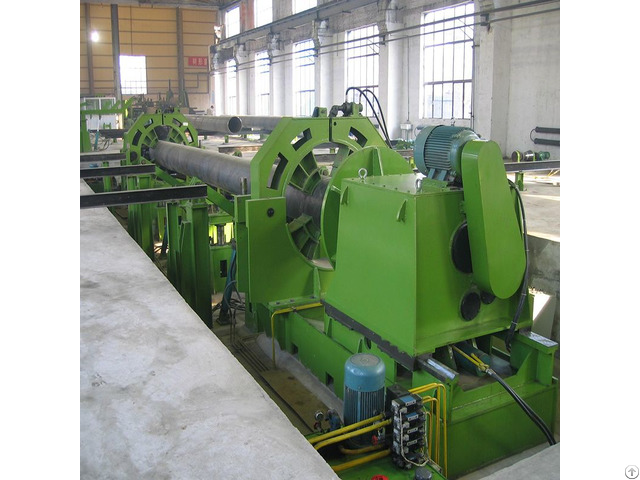

SSAW pipe mill is used to uncoil and level the steel coil, send the strip to forming machine by certain ganle, then bend the pipe by certain angle based on three-roller forming principle, at last weld the spiral welding seam by the submergerd arc welder .
the finished pipe could be used in petroleum &gas low presure fluid conveying system and construction piling pipes .
1 - Technical Process :
Raw Steel Strip Coil → Uncoil → Head opening → Flattening → Centering → Shear → Butt Welding →Centering → Edge Sheared → Centering →Delivery →Pre-bending →Guide Plate →Forming →Internal and External Welding → Cutting Off → Steel Pipe Output and Sortout → Deslagging → Appearance test→ Repair welding → Trimming → Hydro-testing → UT → End facing & Beveling → Finished product testing → Put in storage.
2 - Function :
For liquid delivery: water supply& drainage;
For gas delivery: coal gas, steam and LPG;
For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.
3 - Specifications
Grade: Q235, Q345, X42-X70
Size: 3200x25.4mm
Thickness: 6-25.4mm
Standard: ASTM, API
Certification: ISO9001, SGS, CE
Company Contact:
- Posted By: GEIT GROUP CO.,LTD
- Phone: +86-18330116125
- Address: Room711,Culture building, Beijing Road, Yunhe District, Cangzhou City, Hebei,China, Cangzhou , China
- Email:
- Website: http://www.geit-group.com
Published date: October 17, 2018
- Business Description: GEIT Group is a highly recognized fabrication of Color coating equipment company that has been committed to quality and service since 1992 - It is specialized in design, manufacture and install of Color coating line of steel coil, Color coating line of aluminium coil, etc.
