Rubber Hose

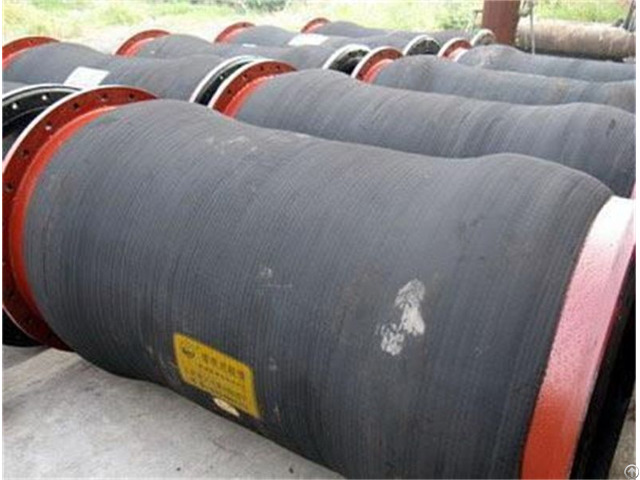

The rubber hoses are used with dredgers for sand conveyance.

It is normally installed between the HDPE pipes, ensure the whole pipelines more flexible.

Thickness of rubber hose we offer is from 15mm to 80mm.

The suitable working temperature is from -30℃ to 50℃.

It is convenient to install, flexible to use, abrasion-resistant and bending-resistant.

Tengyuan is specialized in producing UHMWPE Pipe, plastic floater, rubber hose, HDPE dredging pipe and Dredging Engineering Pipe, etc.

Welcome to contact us, you will be kindly replied in 8 hours and quoted in 24 hours after receiving inquiry.

Detailed Information: Material EPDM, Natural Rubber, Silicon, FKM, IIR, NBR, SBR, Sponge Rubber and so on.

Color Black or customized.

Hardness Shore A

Service OEM or ODM services provided.

Tolerance ±0.05mm

Density 1.0-2.0g/cm³

MOQ 1 pc Specifications

Standard Size Working Pressure (Mpa) Standard Size Working Pressure (Mpa)

Inner Diameter (mm) Total Length (mm) Inner Diameter (mm) Total Length (mm) 100 1000 1.0 556 1500 1.8

150 1000 1.0 606 1500 1.8

200 1200 1.0 650 1600 1.8

250 1200 1.2 706 1800 1.8

300 1200 1.2 756 1800 2.0

350 1200 1.2 800 2000 2.0

406 1200 1.5 850 2000 2.5

456 1300 1.5 900 2000 2.8

506 1400 1.6 Total Length: ≤100000mm; Working pressure and flanges can be customized.

Properties

Items Index Items Index Items Index Note

Working Pressure MPa ≥0.8 Tensile Strength MPa ≥11.8 Ageing Resistance 70ºCx72h The parameters follow the standard of HG-T2185-9.

The strength layer is 200D/3 cord fabric and the pulling force is 380N for each single root.

Test Pressure MPa ≥1.2 Elongation (%) ≥400 Shore Hardness A 63±3 Burst Pressure MPa ≥2.4 Ozone Proof No Cracking in 48 hours exposing in Ozone Adhesion Strength Between Each Layer KN/m ≥1.0 Conveying Medium Muddy, water Abrasion ≤0.395cm³ Strength Layer 4 layers of cord fabric Tengyuan can supply municipal engineering pipe, dredging engineering pipe, HDPE Gas Pipe, Power Engineering Pipe, Mining Pipe and agriculture irrigation pipe, etc.

Integrity is the foundation of us, as well as the guarantee for enterprise's sustainable development.

Features

1 - Various hardness for your selection.

2 - Oil resistance.

3 - Good anti-aging performance.

4 - Easy for bonding to other material.

5 - Excellent oxygen and ozone resistance.

6 - Non-flammable and self-extinguish property.

7 - Good gas tightness.

8 - High heat resistance.

9 - Good abrasion resistance .

Flange Adapter HDPE, HDPE Tee, Pipe Floats, Rubber Suction Hose for sale.
